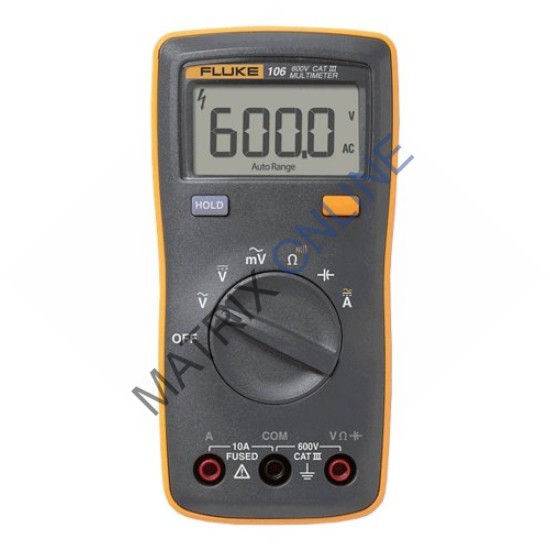

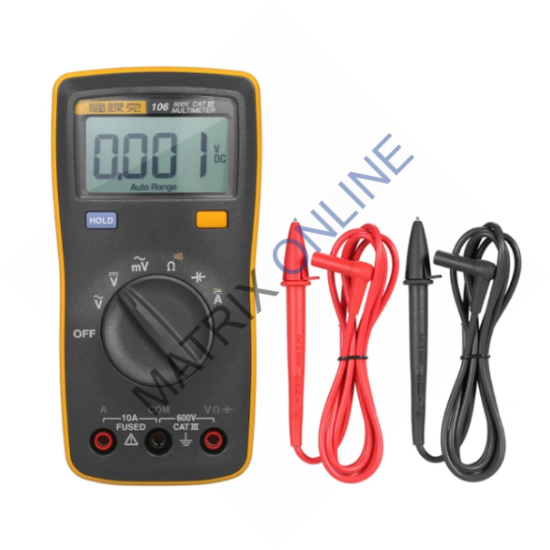

Product overview: Fluke 106 Palm-sized Digital Multimeter

The Fluke 106 is a compact, easy-to-use multimeter made to fit the way you work. It is the perfect first-pass troubleshooting tool: small enough to fit in a shirt pocket or work bag, tough enough to withstand daily use, and extremely simple to use. All without compromising safety. For everyday applications, where true-rms accuracy isn’t needed, the Fluke 106 delivers reliable measurements time after time.


Specifications: Fluke 106 Palm-sized Digital Multimeter

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ± ([% of Reading] + [Number of Least Significant Digits])

Accuracy Specifications

Function

Range

Resolution

Accuracy

AC Volts
(40 Hz to 500Hz)1

6.000 V
60.00 V
600.0 V

0.001 V
0.01 V
0.1 V

1.0 % + 3

DC Volts

6.000 V
60.00 V
600.0 V

0.001 V
0.01 V
0.1 V

0.5 % + 3

AC Millivolts

600.0 mV

0.1 mV

3.0 % + 3

Resistance
(Ohms)

400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ

0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ

0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5% + 3

Capacitance2

50.00 nF
500.0 nF
5.000 μF
50.00 μF
500.0 μF
1000 μF

0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF

2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5

AC Current
(40 Hz to 200 Hz)

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

DC Current

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

All AC are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.

Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range).

Function

Overload Protection

Input Impedance (Nominal)

Common Mode Rejection Ratio

Normal Mode Rejection Ratio

AC Volts

600 V 1

>10 MΩ <100 pF 2

>60 dB at dc,
50 Hz or 60 Hz

−

\AC Millivolts

600 mV

>1M <100 pF

>80 dB at 50 Hz or 60 Hz

−

DC Volts

600 V 1

>10 MΩ <100 pF

>100 dB at dc,
50 Hz or 60 Hz

>45 dB at 50 Hz or 60 Hz

6 x 105 V Hz Max

For mV (AC), input impedance is approximately 1 MΩ.

General Specifications

Maximum Voltage Between any Terminal and Earth Ground

600 V

Display (LCD)

6000 counts, updates 3/sec

Battery Type

2 AAA, NEDA 24A, IEC LR03

Battery Life

200 hours minimum

Temperature

Operating

0 °C to 40 °C

Storage

-30 °C to 60 °C

Relative Humidity

Operating Humidity

Non-condensing when <10°C
≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C

Operating Humidity, 40 MΩ Range

≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C

Altitude

Operating

2000 m

Storage

12,000 m

Temperature Coefficient

0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse Protection for Current Inputs

11A, 1000V Fast Fuse, Fluke specified part only

Size (HxWxL)

142 mm x 69 mm x 28mm

Weight

200 g

IP Rating

IEC 60529: IP 40

Safety

IEC 61010-1: 600 V CAT III, Pollution Degree 2

Electromagnetic Environment

IEC 61326-1: Portable

Electromagnetic Compatibility

Applies to use the Korea only.  Class A Equipment (Industrial Broadcasting and Communication Equipment)1
