Product overview:

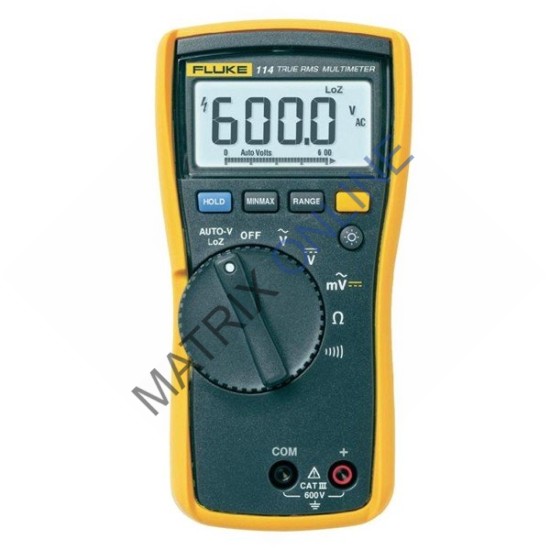

Fluke 114 Electrical Multimeter
Fluke 114 digital multimeter is the ideal choice for
go/no-go testing

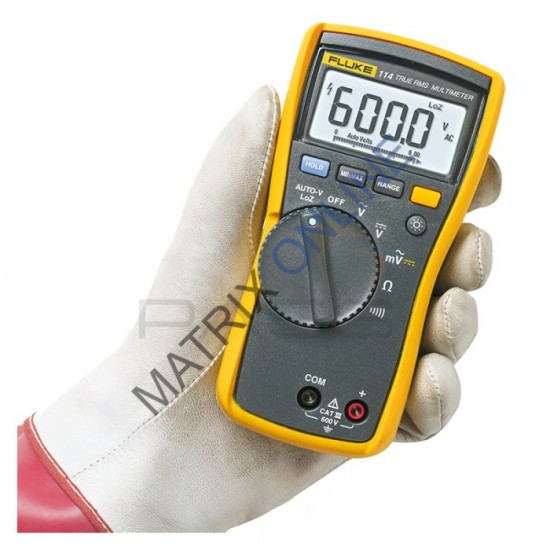

Designed for easy one-handed operation, the compact Fluke
114 True RMS digital multimeter is the perfect troubleshooting tool for go/no
go testing. Its AutoVolt capability automatically switches to measure AC or DC
voltage, whichever is present. And you can use the LoZ function to identify
so-called ghost voltage and prevent false readings.
Specifications: Fluke
114 Electrical Multimeter
Specifications | ||
Maximum voltage between any terminal and earth ground | 600 V | |
Safety | IEC 61010-1: Pollution Degree 2 | |
Display | Digital: 6,000 counts, updates 4 per second | |
Bar graph | 33 segments, updates 32 per second | |
Operating temperature | -10°C to + 50°C | |
Storage temperature | -40°C to + 60°C | |
Battery type | 9 volt Alkaline, IEC 6LR61 | |
Battery life | 400 hours typical, without backlight | |
Accuracy
specifications | ||
DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
DC volts | Range/resolution | 6.000 V / 0.001 |
Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
Auto volts | Range/resolution | 600.0 V / 0.1 V |
Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) | |
AC millivolts1 True RMS | Range/resolution | 600.0 mV / 0.1 mV |
Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
AC volts1 True RMS | Range/resolution | 6.000 V / 0.001 |
Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
Continuity | Range/resolution | 600 Ω / 1 Ω |
Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or
shorts of | |
Ohms | Range/resolution | 600.0 Ω / 0.1 Ω |
Accuracy | 0.9% + 1 | |
Range/resolution | 40.00 MΩ / 0.01 MΩ | |
Accuracy | 5% + 2 | |
1. All ac voltage ranges except Auto-V/LoZ are specified
from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. | ||
Mechanical &
General Specifications | ||
Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
Weight | 550 g | |
