- Stock: In Stock
- Model: 5 kV Digital Insulation Tester
Product overview:

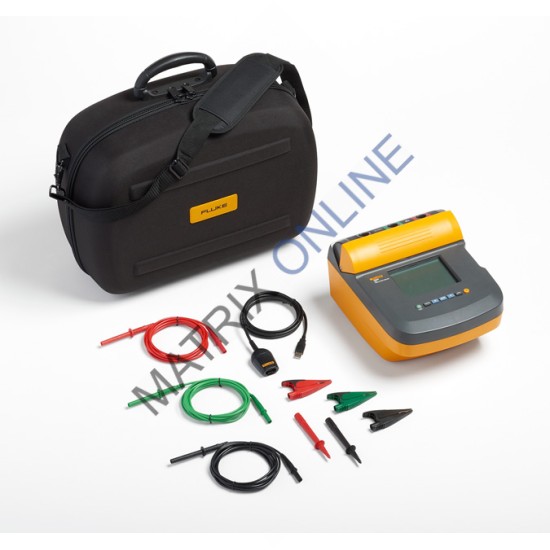

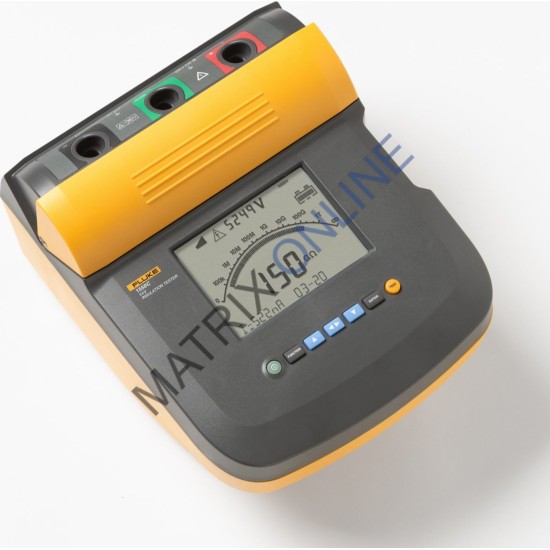

Fluke 1550C FC 5 kV Digital Insulation Tester
Data collection from
insulation tests made easy
The Fluke 1550C performs digital insulation testing up to 5

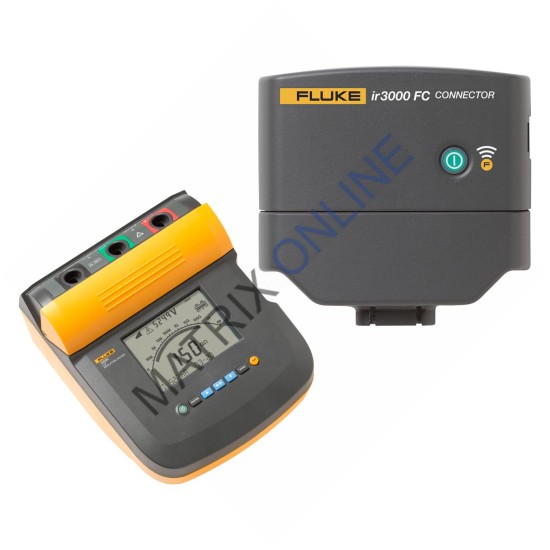

kV, and makes data collection easy through the Fluke Connect™ wireless app.
Remote operation lets you spend as little time as possible in potentially
hazardous zones. Real-time trending shows a live graph on your phone, rather
than a hard-to-read set of changing values. And you can create reports quickly,
using pre-designed templates that you can customize with company logos. It’s
the perfect tool for preventive or predictive maintenance programs designed to
identify potential equipment failures before they occur. And it comes with a
three-year warranty and CAT IV 600 V safety rating.
Specifications: Fluke
1550C FC 5 kV Digital Insulation Tester
Electrical
Specifications | ||
The tester's accuracy is specified for one year after
calibration at operating temperatures of 0°C to 35°C. For operating
temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ± .25%
per °C, except on the 20% bands add ± 1% per °C. | ||
Insulation
Resistance Measurement | ||
Test voltage (DC) | ||
250 V | Range | < 250 kΩ, |
Accuracy (± reading) | Unspecified | |
500 V | Range | < 500 kΩ |
Accuracy (± reading) | Unspecified | |
1000 V | Range | < 1 MΩ |
Accuracy (± reading) | Unspecified | |
2500 V | Range | < 2.5 MΩ |
Accuracy (± reading) | Unspecified | |
5000 V | Range | < 5 MΩ |
Accuracy (± reading) | Unspecified | |
Bar graph range | 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555) | |
Insulation test voltage accuracy | -0%, +10% at 1 mA load current | |
Induced AC mains current rejection | 2 mA maximum | |
Charging rate for capacitive load | 5 seconds per μF | |
Discharge rate for capacitive load | 1.5 s/μF | |
Leakage current measurement | Range | 1 nA to 2 mA |
Accuracy | ± (20% + 2 nA) | |
Capacitance measurement | Range | 0.01 μF to 15.00 μF |
Accuracy | ± (15% rdg + 0.03 μF) | |
Timer | Range | 0 to 99 minutes |
Resolution setting | 1 minute | |
Resolution indication | 1 second | |
Live circuit warning | Warning range | 30 V to 660 V AC/DC, 50/60 Hz |
Voltage accuracy | ± (15% + 2 V) | |
Software specifications | FlukeView Forms™ basic software requires a PC running
Windows XP, Windows Vista , Windows 7 or Windows 8. | |
General
Specifications | ||
Display | 75 x 105 mm | |
Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 | |
Charger Input (AC) | 85 V to 250 V AC 50/60 Hz 20 VA | |
This Class II (double insulated) instrument is supplied
with a Class 1 (grounded) power cord. The protective earth terminal (ground
pin) is not connected internally. The extra pin is for added plug retention
only. | ||
Dimensions | 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in) | |
Weight | 3.7 kg (8.2 lb) | |
Temperature (operating) | -20°C to 50°C (-4°F to 122°F) | |
Temperature (storage) | -20°C to 65°C (-4°F to 149°F) | |
Humidity | 80% to 31°C decreasing linearly to 50% at 50°C | |
Altitude | 2000 m | |
Enclosure sealing | IP40 | |
Input overload protection | 1000 V AC | |
Electromagnetic compatibility | EN 61326 | |
Safety compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2. | |
