Product overview:

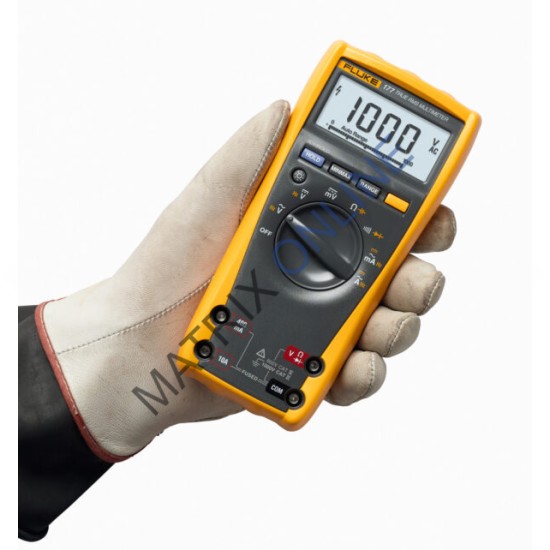

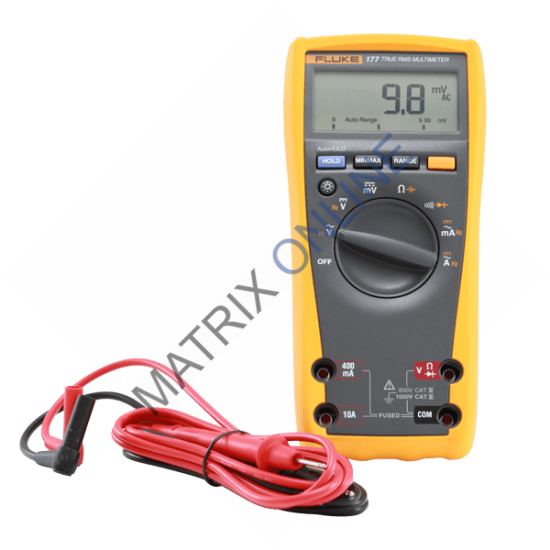

Fluke 177 True-RMS Digital Multimeter with display backlight
Fluke 177 TRMS Digital Multimeter with display backlight
delivers the right features for electrical maintenance experts
Independently tested for safe use in CAT IV 600 V/CAT III
1000 V environments. The Fluke 177 TRMS digital multimeter includes all the
features you need to troubleshoot and repair many problems in electrical and
electronic systems.
Specifications: Fluke
177 True-RMS Digital Multimeter with display backlight
Specifications | ||
Voltage DC | Accuracy1 | ±(0.09% + 2) |
Max. resolution | 0.1 mV | |
Maximum | 1000 V | |
Voltage AC | Accuracy1 | ±(1.0% + 3) |
Max. resolution | 0.1 mV | |
Maximum | 1000 V | |
Current DC | Accuracy1 | ±(1.0% + 3) |
Max. resolution | 0.01 mA | |
Maximum | 10 A | |
Current AC | Accuracy1 | ±(1.5% + 3) |
Max. resolution | 0.01 mA | |
Maximum | 10 A | |
Resistance | Accuracy1 | ±(0.9% + 1) |
Max. resolution | 0.1 Ω | |
Maximum | 50 MΩ | |
Capacitance | Accuracy1 | ±(1.2% + 2) |
Max. resolution | 1 nF | |
Maximum | 10,000 µF | |
Frequency | Accuracy1 | ±(0.1% + 1) |
Max. resolution | 0.01 Hz | |
Maximum | 100 kHz | |
1. Accuracies are best accuracies for each function | ||
Environmental
Specifications | ||
Operating temperature | -10°C to +50°C | |
Storage temperature | -30°C to +60°C | |
Humidity (without condensation) | 0% – 90% (0°C – 35°C) | |
Safety
Specifications | ||
Overvoltage category | EN 61010–1 to 1000 V CAT III | |
Agency approvals | UL, CSA, TÜV listed and VDE Pending | |
Mechanical and
General Specifications | ||
Size | 43 x 90 x 185 mm | |
Weight | 420 g | |
Battery life | Alkaline ~200 hours typical, without backlight | |
