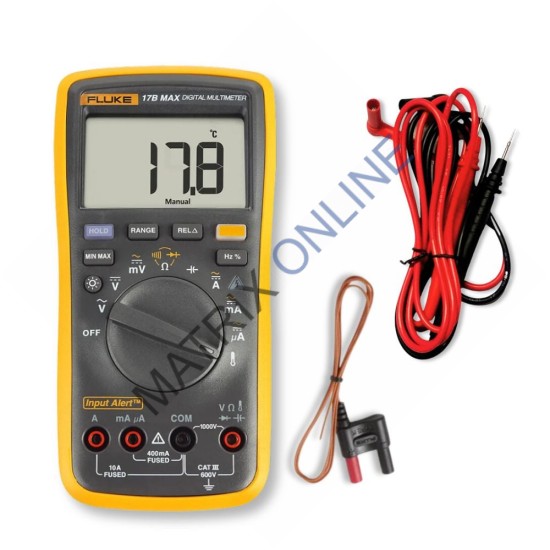

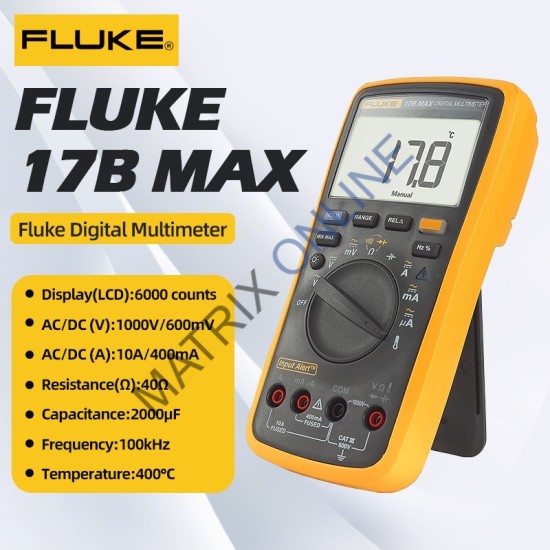

Fluke 17B Max

AC Volts (40 Hz to 500 Hz)1

6.000 V
60.00 V
600.0 V
1000 V

0.001 V
0.01 V
0.1 V
1 V

1.0 % + 3

1.0 % + 3

AC Millivolts

600.0 mV

0.1 mV

3.0 % + 3

3.0 % + 3

DC Volts

6.000 V
60.00 V
600.0 V
1000 V

0.001 V
0.01 V
0.1 V
1 V

0.5 % + 3

0.5 % + 3

DC Millivolts

600.0 mV

0.1 mV

1.0 % + 10

1.0 % + 10

AC Current μA (40 Hz to 400 Hz)2

400.0 μA
4000 μA

0.1 μA
1 μA

1.5 % + 3

1.5 % + 3

AC Current mA (40 Hz to 400 Hz)2

40.00 mA
400.0 mA

0.01 mA
0.1 mA

1.5 % + 3

1.5 % + 3

AC Current A (40 Hz to 400 Hz)2

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

1.5 % + 3

DC Current μA2

400.0 μA
4000 μA

0.1 μA
1 μA

1.5 % + 3

1.5 % + 3

DC Current mA2

40.00 mA
400.0 mA

0.01 mA
0.1 mA

1.5 % + 3

1.5 % + 3

DC Current A2

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

1.5 % + 3

Diode Test3

2.000 V

0.001 V

10%

10%

Temperature 4

50.0 °C to 400.0 °C
0 °C to 50.0 °C
-55.0 °C to 0 °C

0.1 °C

NA

2 %+1 °C
2 °C
9 %+2 °C

Resistance (Ohms)5

400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ

0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ

0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5 % + 3

0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5 % + 3

Capacitance6

40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
2000 μF

0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF

2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5

2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5

Frequency1 (10 Hz to 100 kHz)

50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz

0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz

NA

0.1 % + 3

Duty Cycle1

1% to 99%

0.10%

NA

1 % typical7

Continuity Threshold

—

—

70Ω

70Ω

Backlight

—

—

Yes

Yes

1 All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
2 Typical burden voltage: DC/AC Current µA: 100 µV / µA; DC/AC Current mA: 2 mV/mA; DC/AC Current A: 0.03 V/A
3Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA
4Use Type K thermocouple
5 Typical open circuit test voltage is 0.54 V, maximum short circuit current is 1.8 mA
6Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range).
7 Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10 % and 90 %.

AC Volts

1000 V 1

>10 MΩ, <100 pF

>60 dB at 50 Hz or 60 Hz

—

AC Millivolts

1000 V 1

>1 MΩ, <100 pF

>80 dB at 50 Hz or 60 Hz

—

DC Volts

1000 V 1

>10 MΩ, <100 pF

>100 dB at 50 Hz or 60 Hz

>60 dB at 50 Hz or 60 Hz

DC Millivolts

1000 V 1

>1 MΩ, <100 pF

>80 dB at 50 Hz or 60 Hz

—

1106 V Hz max

General Specifications

Maximum voltage between any Terminal and Earth Ground

600 V

Maximum differential voltage between V and COM terminals

1000V

Display (LCD)

6000 counts, updates 3/sec

Battery Type

2 AA, IEC LR6

Battery life

500 hours minimum

Temperature

Operating 0 °C to 40 °C;
Storage -30 °C to 60 °C

Relative Humidity

Operating Humidity Non-condensing
(<10 °C); ≤90 % RH at 10 °C to 30 °C;
≤75 % RH at 30 °C to 40 °C

Operating Humidity, 40 MΩ range

≤80 % RH at 10 °C to 30 °C; ≤70 % RH at 30 °C to 40 °C

Altitude

Operating 2000 m; Storage 12000 m

Temperature Coefficient

0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse protection for current inputs

440 mA, 1000 V, fast-blow, use only Fluke
specified parts. 11 A, 1000 V, fast-blow,
use only Fluke specified parts

Size (HxWxL)

183 mm x 91 mm x 49.5 mm

Weight

455 g

Ingress Protection

IP40

Safety

IEC 61010-1, IEC61010-2-030: CAT III
600 V, Pollution Degree 2

Electromagnetic Environment

IEC 61326-1: Portable
