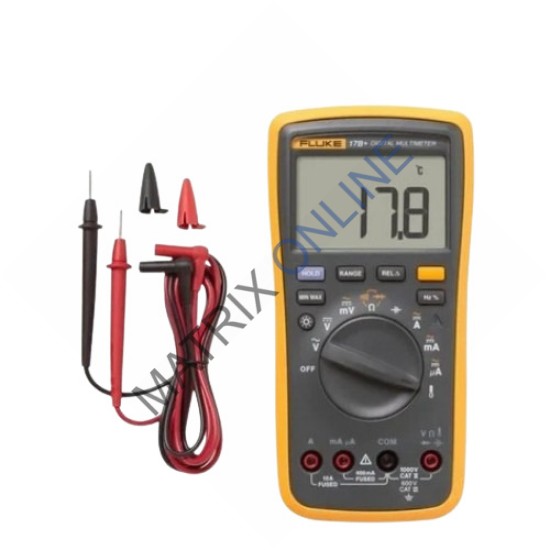

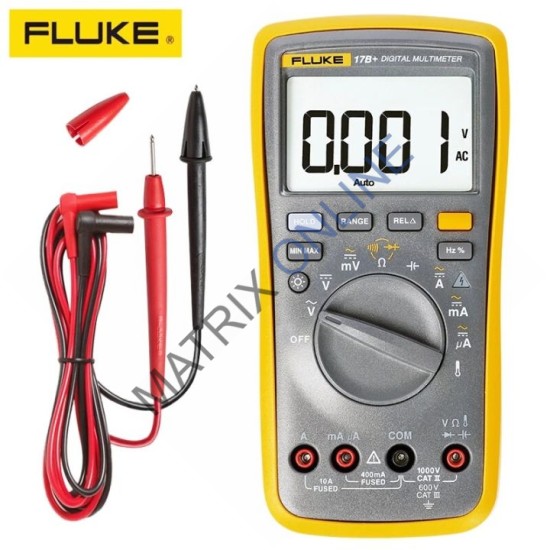

Product overview: Fluke 17B+ Digital Multimeter

Fluke quality is always within your reach

Experience the precision, durability, and safety of a professional-grade test tool with the Fluke 17B+ Digital Multimeter. With the Fluke 17B+, you'll have a rugged, portable tool that's designed to be used with one hand, even while wearing gloves. It provides all the essential features you need in a digital multimeter, from AC/DC voltage and current measurements up to 1000V and 10A, to comprehensive capabilities including resistance, capacitance, and frequency checks. It also comes standard with a type K thermocouple so you can measure the temperature of things like your refrigeration systems, heat exchangers, and line sets. The 17B+ also supports relative measurements which allows you to zero out a source reading so you can easily measure changes in things like voltage drop or temperature making it ideal for identifying and diagnosing issues.

The CAT III 600V safety rating provides peace of mind for everything from routine checks on electrical equipment and appliances, to checking voltage levels at power outlets or switches, to diagnosing issues with circuits. If you’re looking to build out your toolkit as a DIY enthusiast or early career electrician, look no further than the Fluke 17B+ Digital Multimeter, a reliable and versatile tool that provides the essential features you need.


Specifications: Fluke 17B+ Digital Multimeter

Accuracy Specifications

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0% to 75%. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits).

Function

Range

Resolution

Accuracy



AC volts
(40 Hz to 500Hz)1

4.000 V
40.00 V
400.0 V
1000 V

0.001 V
0.01 V
0.1 V
1 V

1.0% + 3



DC volts

4.000 V
40.00 V
400.0 V
1000 V

0.001 V
0.01 V
0.1 V
1 V

0.5% + 3



AC millivolts

400.0 mV

0.1 mV

3.0% + 3



DC millivolts

400.0 mV

0.1 mV

1.0% + 10



Diode test2

2.000 V

0.001 V

10%



Resistance
(Ohms)

400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ

0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ

0.5% + 3
0.5% + 2
0.5% + 2
0.5% + 2
0.5% + 2
1.5% + 3



Capacitance3

40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
1000 μF

0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF

2% + 5
2% + 5
5% + 5
5% + 5
5% + 5
5% + 5



Frequency1 Hz
(10 Hz – 100 kHz)

50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz

0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz

0.1% + 3



Duty Cycle1

1% to 99%

0.1%

1% typical 4



AC current μA
(40 Hz to 400 Hz)

400.0 μA
4000 μA

0.1 μA
1 μA

1.5% + 3



AC current mA
(40 Hz to 400 Hz)

40.00 mA
400.0 mA

0.01 mA
0.1 mA

1.5% + 3



AC current A
(40 Hz to 400 Hz)

4.000 A
10.00 A

0.001 A
0.01 A

1.5% + 3



DC current μA

400.0 μA
4000 μA

0.1 μA
1 μA

1.5% + 3



DC current mA

40.00 mA
400.0 mA

0.01 mA
0.1 mA

1.5% + 3



DC current A

4.000 A
10.00 A

0.001 A
0.01 A

1.5% + 3



Temperature

50 °C- 400 °C
0 °C- 50 °C
-55 °C- 0 °C

0.1C

2% ±1 °C
±2 °C
9% ±2 °C



Backlight

-

-

Yes



1All ac, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified.
2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range).
4Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10% and 90%.



Function

Overload protection

Input impedance (Nominal)

Common mode rejection ratio

Normal mode rejection ratio

AC volts

1000 V 1

>10 MΩ <100 pF

>60 dB at dc,
50 Hz or 60 Hz

-

AC millivolts

400 mV

>1MΩ, <100 pF

>80 dB at 50 Hz or 60 Hz

-

DC volts

1000 V 1

>10 MΩ <100 pF

>100 dB at dc,
50 Hz or 60 Hz

>60 dB at 50 Hz or 60 Hz

DC millivolts

400 mV

>1MΩ, <100 pF

>80 dB at 50 Hz or 60 Hz

-

1 106 V Hz Max



General specifications

Maximum voltage between any terminal and earth ground

1000 V

Display (LCD)

4000 counts, updates 3/sec

Battery type

2 AA, NEDA 15A, IEC LR6

Battery life

500 hours minimum

Temperature

Operating

0 °C to 40 °C

Storage

-30 °C to 60 °C

Relative humidity

Operating humidity

Non-condensing (<10°C)
≤90% RH at 10 °C to 30 °C
≤75% RH at 30 °C to 40 °C

40 MΩ range
≤80% RH at 10 °C to 30 °C
≤70% RH at 30 °C to 40 °C

Altitude

Operating

2000 m

Storage

12,000 m

Temperature coefficient

0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse protection for current inputs

440 mA, 1000 V Fast Fuse, Fluke specified part only.
11A, 1000V Fast Fuse, Fluke specified part only.

Size (H x W x L)

183 x 91 x 49.5 mm

Weight

455 g

IP rating

IP 40

Safety

IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2

Electromagnetic compatibility

IEC 61326-1: Portable EMC Environment
