- Stock: In Stock
- Model: TRMS Rugged IP67 Digital Multimeter

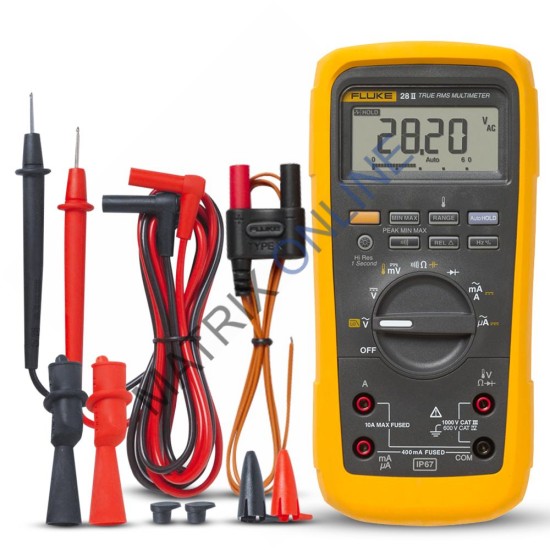

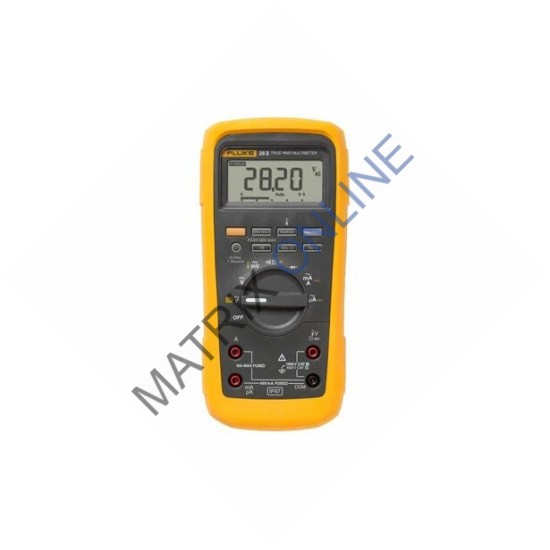

Product overview: Fluke 28 II TRMS
Rugged IP67 Digital Multimeter
The standard for
rugged
The Fluke 28 II digital multimeter defines the standard for
operating in harsh conditions with the features and accuracy to troubleshoot
most electrical problems. The meter offers an IP 67 (waterproof and dustproof)
rating, MSHA approvals, extended operating temperature range of -15 °C to +55
°C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95% humidity, and has been
designed and tested to withstand a 3 m (10 ft) drop. The Fluke 28 II Rigged
Digital Multimeter is built to work in the toughest environments.
Specifications: Fluke 28 II TRMS
Rugged IP67 Digital Multimeter
Accuracy Specifications | ||
DC voltage | Range | 0.1 mV to 1000 V |
Accuracy | 0.05% + 1 | |
AC voltage | Range | 0.1 mV to 1000 V |
Accuracy | 0.7% + 4 | |
DC current | Range | 0.1 μA to 10 A |
Accuracy | 0.2% + 4 | |
AC current | Range | 0.1 μA to 10 A |
Accuracy | 1.0% + 2 | |
Resistance | Range | 0.1 Ω to 50 MΩ |
Display counts | 6000 | |
Capacitance | 1 nF to 9999 μF | |
Frequency | 0.5 Hz to 199.99 kHz | |
Temperature | -200°C to +1090°C | |
Low pass filter
(Measurement on VSD’s) | Yes | |
Compliance | CAT IV 600 V , CAT III
1000 V | |
IP rating | IP 67 | |
Power | Three AA batteries | |
Battery life | 800 hours | |
General Specifications | ||
Display | Bar graph/backlight | Yes/Yes |
Data storage | Peak transient capture | 250 μS |
Min/Max/Avg | Yes | |
Reading hold | Yes | |
Other features | Relative readings
(zero) | Yes |
Battery type | Three AA batteries | |
protection | Safety rating | CAT IV 600 V/CAT III
1000 V |
Mine safety | MSHA Approved | |
External protection | Rubber holster | |
Drop test | 10 feet drop test | |
Dustproof/waterproof | Yes, IP 67 rated | |
Size (H x W x L) with
holster | 6.35 x 10.0 x 19.81 cm
(2.5 x 3.93 x 7.8 in) | |
Weight with holster | 698.5 g (1.54 lb) | |
