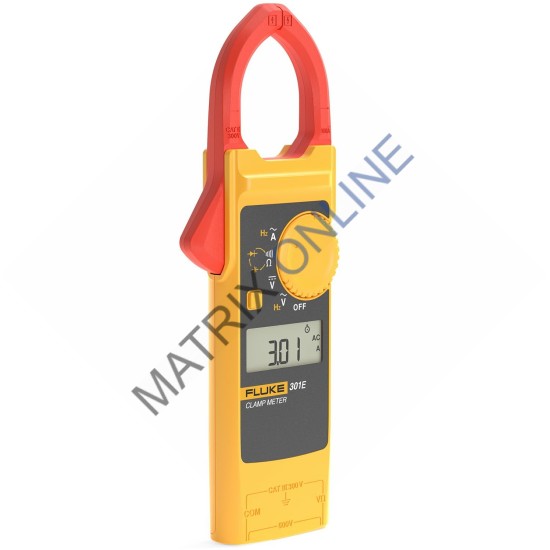

Product overview: Fluke 301E Series AC/DC Clamp Meter

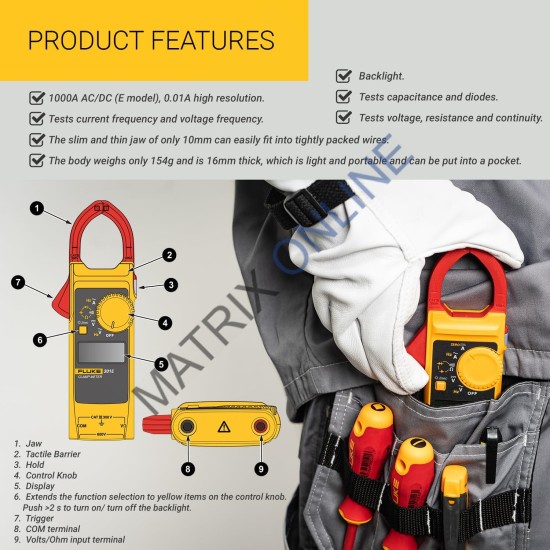

The Fluke 301E Series AC/DC Clamp Meter is designed with a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily fit into tightly packed wires. The Fluke 301E test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc.. You can handle multiple test needs with just one tool. With the AC/DC function, it can be applied to more application scenarios requiring DC testing, such as new energy of PV and wind power, new energy vehicles, communications, data centers, etc..



Specifications: Fluke 301E Series AC/DC Clamp Meter

Models

301D

301E

AC Current (45 to 400 Hz)

Range

60.00 A

600.0 A

60.00 A

600.0 A

1000 A

Resolution

0.01 A

0.1 A

0.01 A

0.1 A

1 A

Accuracy

2% + 10

2% + 5

2% + 10

2% + 5

2% + 5

DC Current

Range

60.00 A

600.0 A

60.00 A

600.0 A

1000 A

Resolution

0.01 A

0.1 A

0.01 A

0.1 A

1 A

Accuracy

2% + 10

2% + 5

2% + 10

2% + 5

2% + 5

AC Voltage (45 to 400 Hz)

Range

600.0 V

600.0 V

Resolution

0.1 V

0.1 V

Accuracy

1.5% + 5

1.5% + 5

DC Voltage

Range

600.0 V

600.0 V

Resolution

0.1 V

0.1 V

Accuracy

1% + 5

1% + 5

Resistance

Range

600.0 Ω
6.000 kΩ
60.00 kΩ

600.0 Ω
6.000 kΩ
60.00 kΩ

Accuracy

1% + 5

1% + 5

Voltage Frequency

Range

9.999 Hz
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz

9.999 Hz
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz

Accuracy

0.1% + 3

0.1% + 3

Current Frequency

Range

45.0-400.0 Hz

45.0-400.0 Hz

Accuracy

0.1% + 3

0.1% + 3

Capacitance

Range

9.999 uF

99.99 uF 999.9 uF

9.999 uF

99.99 uF 999.9 uF

Accuracy

2% + 5

5% + 5

2% + 5

5% + 5

Diode

Range

3.000 V

3.000 V

Accuracy

10%

10%

T-rms Value

-

-

Continuity

●

●

Hold

●

●

Backlight

●

●

Safety rating

CAT III 300 V

CAT III 300 V

Weight

154 g

154 g

Size

190 mm x 52 mm x 16 mm

190 mm x 52 mm x 16 mm

Jaw Opening

34 mm

34 mm

Clamp Arm Size

10 mm X 10 mm

10 mm X 10 mm

Battery

(2) AAA batteries

(2) AAA batteries
