- Stock: In Stock
- Model: True RMS Clamp Meter
Product overview:

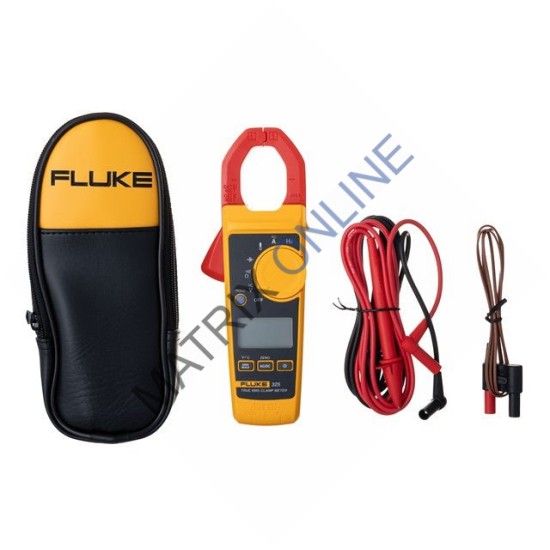

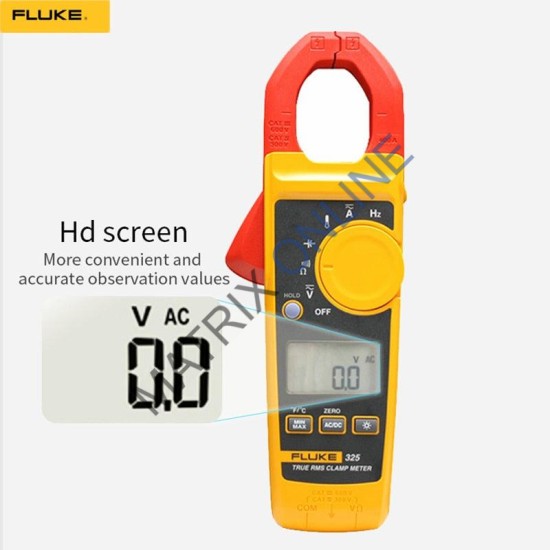

Fluke 325 True RMS Clamp Meter
Troubleshoot problems
safely and accurately
The Fluke 325 True-rms Clamp Meter is a reliable, versatile
troubleshooting tool for commercial and residential electricians. Featuring a
slim design for easy transport and use, and a large display for efficient
troubleshooting. In addition to true-rms AC current and voltage on non-linear
loads, the 325 measures:
Specifications: Fluke
325 True RMS Clamp Meter
Specifications | ||
AC current | Range | 40.00 A / 400.0 A |
Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) | |
DC current | Range | 40.00 A / 400.0 A |
Accuracy | 2% ± 5 digits | |
AC voltage | Range | 600.0 V |
Accuracy | 1.5% ± 5 digits | |
DC voltage | Range | 600.0 V |
Accuracy | 1.0% ± 5 digits | |
Resistance | Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
Accuracy | 1.0% ± 5 digits | |
Continuity | ≤ 30 Ω | |
Capacitance | 0 to 100.0 μF / 100μF to 1000 μF | |
Frequency | 5.0 Hz to 500.0 Hz | |
AC response | True-RMS | |
Backlight | Yes | |
Data hold | Yes | |
Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
Min/Max | Yes | |
Size | H x W x D (mm) | 207 x 75 x 34 |
Max wire diameter | 30 mm (600 MCM) | |
Weight | 283 g | |
Category rating | CAT III 600 V | |
