- Stock: In Stock
- Model: True RMS 2000 A Clamp Meter

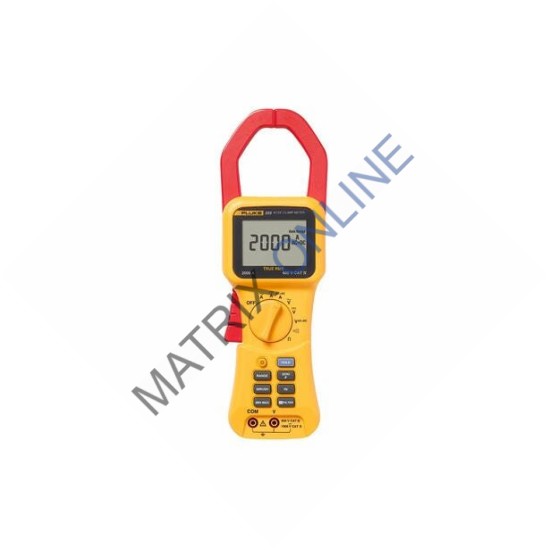

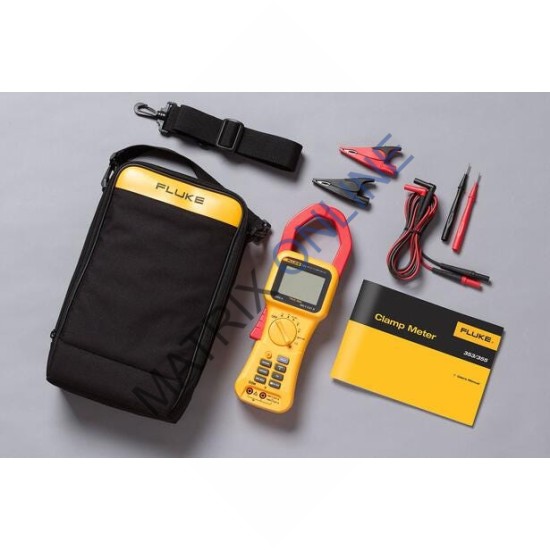

Product overview: Fluke 355 True RMS
2000 A Clamp Meter
Versatile and rugged
clamp meter for high currents
Confidently take reliable readings with the True RMS Fluke
355 digital clamp meter, the tool of choice for high current clamp-on amp meter
measurement up to 2000 A. The extra-wide jaw easily clamps around large
conductors, typically found in high-current applications. The extra rugged
design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user
protection when taking high-powered measurements.
Key Features
Reliably handle a wide range of high-current applications
with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
The large 58 mm (2.3 in) jaw capacity is suitable for large
or multiple conductors
CAT IV 600 V, CAT III 1000 V rating for added user
protection
In-rush current measurement captures ‘power-on’ surge
current with accuracy and repeatability
Specifications: Fluke 355 True RMS
2000 A Clamp Meter
Electrical
Specifications | ||
Current measurement AC 10 Hz to 100 Hz | Range | 40 A / 400 A / 1400 AC rms |
Resolution | 10 mA / 100 mA / 1 A | |
Accuracy | 40 A: 1.5% rdg + 15 digits | |
Trigger level for Inrush | 0.50 A / 5.0 A / 5 A | |
Trigger level for Hz filter OFF | 2.50 A / 2.5 A / 8 A | |
Trigger level for Hz filter ON | 0.50 A / 2.5 A / 8 A | |
Crest Factor (50/60 Hz) | Range | 40 A / 400 A / 1400 AC |
Crest Factor1 | 2 @ 33 A, 2.4 @ 27 A | |
Current measurement AC 100.1 Hz to 1 kHz | Range | 40 A / 400 A / 1400 AC rms |
Resolution | 10 mA / 100 mA / 1 A | |
Accuracy | 40 A: 3.5% rdg + 15 digits | |
Trigger level for Inrush | 0.50 A / 5.0 A / 5 A | |
Trigger level for Hz filter OFF | 2.50 A / 2.5 A / 8 A | |
Trigger level for Hz filter ON | 0.50 A / 2.5 A / 8 A | |
Current measurement DC | Range | 40 A / 400 A / 2000 A |
Resolution | 0.01 A / 0.1 A / 1 A | |
Accuracy | 40 A: 1.5% rdg + 15 digits | |
Voltage measurement AC 10 Hz to 100 Hz | Range | 4 V / 40 V / 400 V / 600 V AC rms |
Resolution | 1 mV / 10 mV / 100 mV / 1 V | |
Accuracy | 4 V: 1% rdg + 10 digits | |
Trigger level for Hz filter OFF | 0.25 V / 6 V | |
Trigger level for Hz filter ON | 0.25 V / 6 V | |
Voltage measurement AC 100.1 Hz to 1 kHz | Range | 4 V / 40 V / 400 V / 600 V ac rms |
Resolution | 1 mV / 10 mV / 100 mV / 1 V | |
Accuracy | 4 V: 3% rdg + 10 digits | |
Trigger level for Hz filter OFF | 0.050 V / 0.25 V / 6 V / 6 V | |
Trigger level for Hz filter ON | 0.050 V / 0.25 V / 6 V / 6 V | |
Voltage measurement DC | Range | 4 V / 40 V / 400 V / 1000 V |
Resolution | 0.001 V / 0.01 V / 0.1 V / 1 V | |
Accuracy | 4 V: 1% rdg + 10 digits | |
Resistance measurement | Range | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ |
Resolution | 0.1 Ω / 1 Ω / 10 Ω / 100 Ω | |
Accuracy | 1.5% + 5 digits | |
Continuity beeper | On at ≤ 30 Ω | |
Frequency measurement | Measurement range | 5.0 Hz to 1 kHz |
Resolution | 0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz) | |
Accuracy – 5.0 Hz to 100 Hz | 0.2% + 2 counts | |
Accuracy – 100.1 Hz to 1 kHz | 0.5% + 5 counts | |
Trigger level | Refer to current and voltage tables | |
1. Add 2% to error spec for CF > 2 | ||
General
Specifications | ||
Batteries | Six 1.5 V AA NEDA 15 A or IEC LR6 | |
Battery life (with typical usage, backlight off) | 100 hours | |
Test leads | Rated to 1000 V | |
Weight | .814 kg (1.8 lb) | |
Jaw size | 58 mm (2.28 in) | |
Dimensions (L x W x D) | 300 x 98 x 52 mm (12 x 3.75 x 2 in) | |
Safety rating | IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III | |
Environmental
Specifications | ||
Operating temperature | 32°F to +122°F (0°C to +50°C) | |
Storage temperature | -4°F to 140°F (-20°C to +60°C) | |
Operating humidity | 0 to 95% (non-condensing) | |
Operating altitude | 2000 m | |
Storage altitude | 10,000 m | |
IP rating | 42 (indoor use only) | |
Drop test requirements | 1 m | |
EMI, RFI, EMC | FCC part 15, IEC/EN 61326-1:1997 class B | |
Temperature coefficients | Current | 0.1% of reading per °C outside 22°C to 24°C |
Voltage | 0.1% of reading per °C outside 22°C to 24°C | |
