Product overview: Fluke 369 FC
Leakage Current Clamp Meter
Reduce downtime –
Find leakage currents without taking equipment offline.

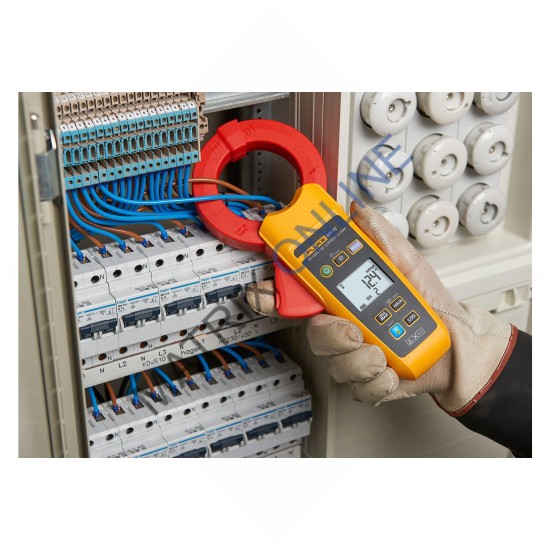

The Fluke 369 FC true-rms leakage current clamp meter helps
users detect, document, record and compare leakage current readings over time
as a means of preventing unplanned downtime, and identifying intermittent GFCI
and RCD trips, all without taking equipment off line.
The Fluke 369 FC has an oversize 61 mm jaw for work with
extra-large conductors. The clamp’s jaw is fully shielded to accurately capture
very small leakage signals, and to minimize external electromagnetic
interference.
The 369 FC also offers wireless data connectivity via Fluke
Connect. As part of Fluke Connect — the industry’s largest system of software
and more than 40 wireless test tools — the 369 FC allows you to track changes
in leakage current over time, helping to identify potential problems before
they turn into major failures
Key features
True-rms measurements for accuracy when measuring complex,
non-sinusoidal waveforms
61 mm jaw opening
Highest resolution of 1 μA, measure up to 60 A
Selectable filter function removes unwanted noise
Max/Min/Average readings and hold function
Forward-facing LED worklight for use in dark wiring cabinets
Backlit display; auto backlight off and auto power off for
extended battery life
CAT III 600V safety rating
Specifications: Fluke 369 FC Leakage
Current Clamp Meter
Electrical
Specifications | ||
Measurement function | Alternating current | |
AC ampere range | 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A | |
Range selection | mA / A: manual selection | |
Range / Resolution | 3 mA¹ / 0.001 mA | |
30 mA / 0.01 mA | ||
300 mA / 0.1 mA | ||
3 A / 0.001 A | ||
30 A / 0.01 A | ||
60 A / 0.1 A | ||
Accuracy – filter activated (40 to 70 Hz), filter off (40
to 1 kHz)² | 3 mA – 30 A | 1% + 5 digits |
Frequency | 40 Hz to 1 kHz | |
Crest Factor | 3 | |
After calibration accuracy is valid for one year. Accuracy
is expressed as ± (% of reading + digits). Reference conditions 23 ±5 °C and
a maximum relative humidity of 80%. | ||
Physical | ||
Display (LCD) | Digital readout: 3300 count | |
Display refresh rate | 4 times / sec | |
Maximum conductor diameter | 61 mm | |
Dimensions | 257 x 116 x 46 mm | |
Weight | 600 g | |
Battery | 2 AA, IEC LR6, NEDA 15A, alkaline | |
Battery life | Expected battery life, without using backlight and
spotlight, is more than 150 hours | |
Automatic shut-down | Meter automatically shuts down after 15 minutes of
inactivity | |
Safety and Environmental Specifications | ||
General safety | IEC 61010-1: Pollution Degree 2 | |
Measurement safety | IEC 61010-2-032: CAT III 600 V / CAT IV 300 V | |
Operating temperature | -10 °C to +50 °C | |
Storage temperature | -40 °C to +60 °C | |
Operating humidity | Non-condensing (<10 °C) | |
90% relative humidity (10 °C to 30 °C) | ||
75% relative humidity (30 °C to 40 °C) | ||
45% relative humidity (40 °C to 50 °C) | ||
Protection class | IEC 60529: IP30 (jaw closed) | |
Operating altitude | 2000 m | |
Storage altitude | 12000 m | |
Current sensor action category | IEC 61557-13: Class 1, ≤100 A / m | |
Electromagnetic compatibility (EMC) | ||
International | ||
IEC 61326-1 | Industrial Electromagnetic Environment | |
CISPR 11 | Group 1 Class B | |
Group 1 | Generated inside the equipment and / or use radio
frequency energy associated with conducting the energy for the device's own
internal functions is essential. | |
Class B | Equipment for home appliances and residential buildings
directly connected to a low voltage power supply network equipment. When this
device is connected to a test object, it may exceed the emission levels
produced by CISPR 11 requirements. | |
Class A | This product meets the requirements of industrial
electromagnetic equipment, vendors or users should be aware of this. This
device is intended for use in a commercial environment, instead of the home
environment. | |
