Product overview:

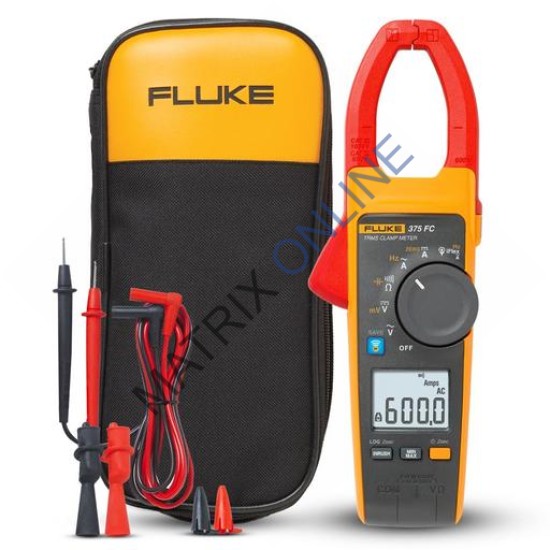

Fluke 375 FC True-RMS AC/DC Clamp Meter
Fluke 375 FC True-RMS
AC/CD Clamp Meter measures very low voltage and very high resistance

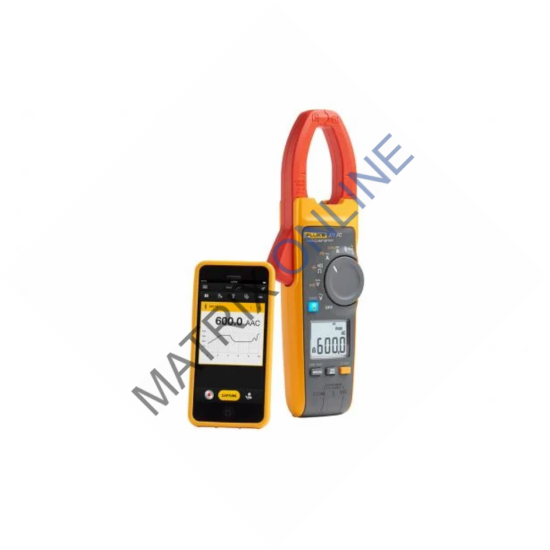

The Fluke 375 FC, part of the Fluke Connect family of
wireless test tools, delivers high performance features and ease of use. It
features a VFD low-pass filter for accurate motor drive measurements and
wireless communications to transmit results to a smartphone via Fluke Connect
Specifications:
AC current via jaw
Range: 600 A
Resolution: 0.1 A
Accuracy: 2 % ± 5 digits
AC current via iFlex™ (optional)
Range: 2500 A
Resolution: 0.1 A
Accuracy: 3 % ± 5 digits
DC current
Range: 600 A
Resolution: 0.1 A
Accuracy: 2 % ± 5 digits
AC voltage
Range: 1000 V
Resolution: 0.1 V (<600V+)
Resolution: 1 V (<1000V)
Accuracy: 1.5 % ± 5 digits (20 Hz
to 500 Hz)
DC voltage
Range: 1000 V
Resolution: 0.1 mV
Accuracy: 1 % ± 5 digits
Resistance
Range: 60,000 Ω
Resolution: 0.1 Ω
Accuracy: 1 % ± 5 digits
Frequency
Range: 500 Hz
Resolution: 0.1 Hz
Accuracy: 0.5 % ± 5 digits
Capacitance
Range: 1 µF to 1000 µF
Resolution: 1 µF
Accuracy: 1 % ± 4 digits
General Specifications
Diameter of measurable conductor:
0.13" or 34 mm max
Size: 246 x 83 x 43 mm, (9.685 x
3.267 x 1.692 in.)
Weight:
388g, (14 oz.)
