- Stock: In Stock
- Model: Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex

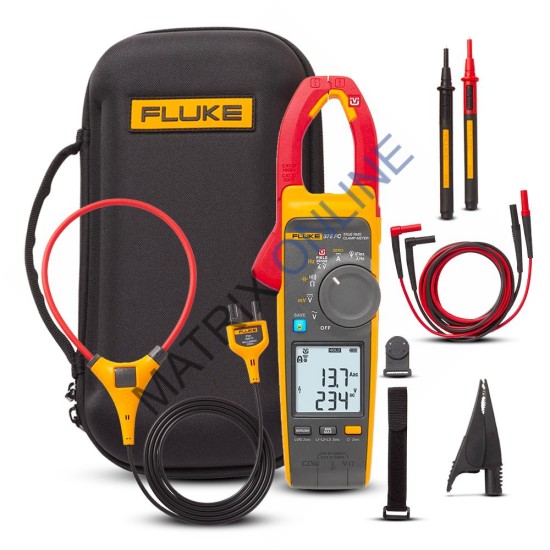

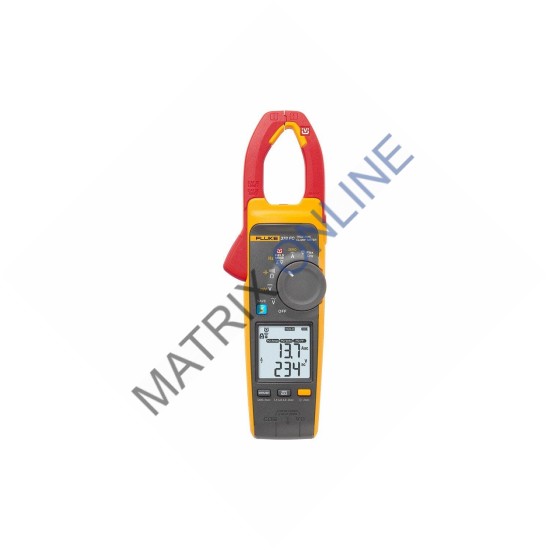

Product overview: Fluke 378 FC
Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex
Voltage and current
measurements with FieldSense™ technology
The Fluke 378 FC true-rms clamp meter uses FieldSense™
technology to make testing faster and safer, all without contacting a live
conductor. You get accurate voltage and current measurements through the clamp

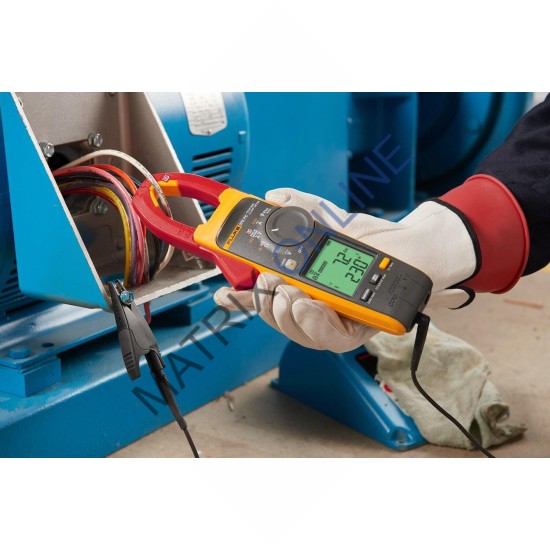

jaw. Simply clip the black test lead to any electrical ground, put the clamp
jaw around the conductor and see reliable, accurate voltage and current values
on the display.
Power quality indicator shows whether a problem is in the
equipment or the power line
The 378 FC clamp meter includes a unique PQ function that
senses power quality issues automatically. When making FieldSense measurements,
the 378 FC will detect and display power quality issues, relating to current,
voltage, power factor or any combination of the three. Now you can quickly
determine if an upstream supply problem exists, or if there is a downstream
equipment problem.
Key Features
Measure voltage and current with your clamp jaw
Faster, safer testing - all without touching a live wire -
using FieldSense™ technology
Power quality indicator shows whether equipment or power
line is faulty
Complete 3-phase voltage and current tests in 3 quick steps
Specifications: Fluke 378 FC
Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex
General
specifications | ||
General Maximum Voltage between any Terminal and Earth
Ground | 1000 V | |
Battery | Type | 2 AA IEC LR6 alkaline |
Life | 200 hour | |
Display | Dual readout | |
Automatic Power Off | 20 minutes | |
Electrical | ||||
AC Current: Jaw | ||||
Range | 999.9 A | |||
Resolution | 0.1 A | |||
Accuracy | 2 % ±5 digits (45 Hz to 66 Hz) | |||
Crest Factor (50/60 Hz) | 3 @ 500 A | |||
AC Current:
Flexible Current Probe | ||||
Range | 2500 A | |||
Resolution | 1 A (≤2500 A) 0.1 A (≤999.9 A) | |||
Accuracy | 3 % ±5 digits (5 Hz to 500 Hz) | |||
Crest Factor (50/60Hz) | 3.0 at 1100 A | |||
Position
Sensitivity | ||||
Distance from Optimum | i2500-10 Flex | i2500-18 Flex | Error | |
A | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) | ± 0.5 % | |
B | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) | ± 1.0 % | |
C | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) | ± 2.0 % | |
Measurement uncertainty assumes centralized primary
conductor at optimum position, no external electrical or magnetic field, and
within operating temperature range. | ||||
DC Current | ||||
Range | 999.9 A | |||
Resolution | 0.1 A | |||
Accuracy | 2 % ±10 digits1 | |||
[1]When using the ZERO function to compensate for offsets | ||||
AC Voltage: Field
Sense | ||||
Range | 1000 V | |||
Resolution | 1 V (≤1000V) | |||
Accuracy | ≤4/0 AWG | 3 % ±5 digits (45 Hz to 66 Hz) | ||
≥4/0 AWG | 5 % ±5 digits (45 Hz to 66 Hz) | |||
Position wire as close as possible to jaw opening (see
illustration). | ||||
AC Voltage: Test
Leads | ||||
Range | 600.0 V 1000 V | |||
Resolution | 0.1 V (≤600.0 V) | |||
Accuracy | 1 % ±5 digits (20 Hz to 500 Hz) | |||
DC Voltage | ||||
Range | 600.0 V | |||
Resolution | 0.1 V (≤600.0 V) | |||
Accuracy | 1 % ±10 digits | |||
mV dc | ||||
Range | 500.0 mV | |||
Resolution | 0.1 mV | |||
Accuracy | 1 % ±5 digits | |||
Amps Frequency: Jaw | ||||
Range | 45 Hz to 66 Hz | |||
Resolution | 0.1 Hz | |||
Accuracy | 0.5 % ±5 digits | |||
Trigger Level | 5 Hz to 10 Hz, ≥10 A | |||
Amps Frequency:
Flexible Current Probe | ||||
Range | 5.0 Hz to 500.0 Hz | |||
Resolution | 0.1 Hz | |||
Accuracy | 0.5 % ±5 digits | |||
Trigger Level | 5 Hz to 20 Hz, ≥25 A | |||
Resistance | ||||
Range | 60.00 kΩ | |||
Resolution | 0.1 Ω (≤600.0 Ω) | |||
Accuracy | 1 % ±5 digits | |||
Capacitance | ||||
Range | 1000 μF | |||
Resolution | 0.1 μF (≤100.0 μF) | |||
Accuracy | 1 % ±4 digits | |||
Mechanical | ||||
Size (L x W x H) | 274 mm x 86 mm x 47 mm | |||
Weight (with Batteries) | 463 g | |||
Jaw Opening | 34 mm | |||
Flexible Current Probe Diameter | 7.5 mm | |||
Flexible Current Probe Cable Length (head to electronics
connector) | 1.8 m | |||
Rogowski Coil Length | 450 mm | |||
Environmental | ||||
Operating Temperature | -10 °C to 50 °C | |||
Storage Temperature | -40 °C to 60 °C | |||
Operating Humidity (without condensation) | Non condensing (<10 °C) | |||
Temperature Coefficients | Add 0.1 x specified accuracy for each degree C >28 °C
or <18 °C | |||
Ingress Protection | IEC 60529: IP30 (jaw closed) | |||
Operating Altitude | 2000 m | |||
Storage Altitude | 12 000 m | |||
