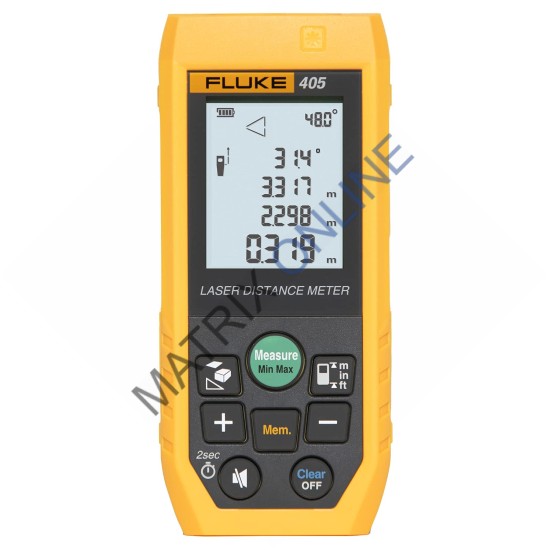

Fluke 405

Specifications

Range

0.2 to 40 m

0.2 to 60 m

0.2 to 50 m

0.2 to 80 m

0.2 to 100 m

Accuracy*
in favorable condition**

±(2.0mm+5x10-5D)

±(2.0mm+5x10-5D)

Accuracy
in unfavorable condition***

±(3.0mm+29x10-5D)

±(3.0mm+29x10-5D)

Angle accuracy

±(0.3°+0.1°+0.01*A), A is up to ±45° in each quadrant

Angel measurement method

Electronic

Measurement unit

m / ft / in / ft+in

Display

1.6 inch, segment alphanumeric display

2.0-inch positive display

* Temperature for specified accuracy: 25°C

** Favorable conditions: white and diffuse reflection objects (white painted walls) ,low background illumination and moderate temperature

*** Unfavorable conditions: objects with low or high reflectivity, high background illumination or the temperature is at the upper or lower limit of the specified temperature range

Measurements

Single measurement

●

●

●

●

●

Continuous measurement

●

●

●

●

●

Area measurement

●

●

●

●

●

Volume measurement

●

●

●

●

●

Auto Leveling

●

●

●

●

●

Auto Vertical

●

●

●

●

●

Pythagoras 1

●

●

●

●

●

Pythagoras 2

●

●

●

●

●

Plus-minus method

●

●

●

●

●

Measurement reference

Front / Back

Front / Tripod hole / Back / Extender

Auto-off

3 minutes after inactivity

3 minutes after inactivity

History measurement data

30 sets

100 sets

Time-delay measurement

●

●

●

Auto calibration

●

●

●

Side button

●

●

●

Extender

●

●

●

General

Laser class

Class 2

Laser type

630 to 670nm, <1mW

Battery life

up to 5000 measurements (single measurement)

up to 3500 measurements (single measurement)

Operating temperature

0 C° to 40 C°

Storage temperature

-10 C° to 60 C°

Ingress protection

IP54

IP65

Drop test

1 m

1 m

Size

50 mm × 115mm × 29mm

52 mm × 116mm × 28mm
