- Stock: In Stock
- Model: HVAC Infrared & Contact Thermometer -40°C to 550° C
Product overview: 561

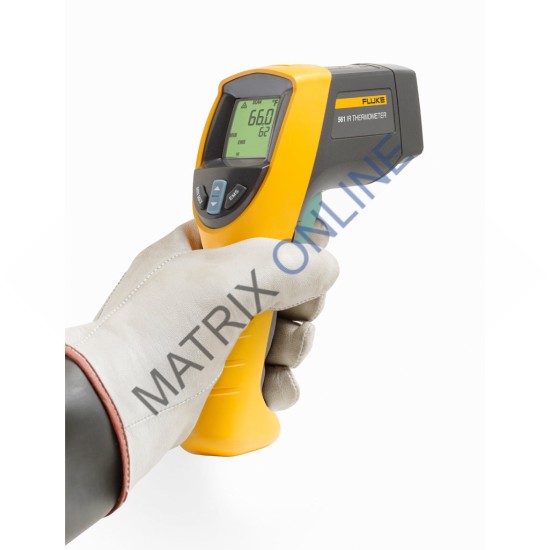

HVAC Infrared & Contact Thermometer
Fluke 561 IR and contact thermometer meets the needs of most
industrial and residential temperature applications
The Fluke 561 IR contact thermometer combines the
temperature measurement functions that industrial, electrical, and HVAC/R
professionals need in one tool. It is an IR thermometer for non-contact
measurements, with K-type thermocouple capability for contact temperature
measurement. It's fast, efficient, and easy to use, saving you valuable time
and effort.
Use the 561 IR capabilities to scan large areas or small
objects quickly and efficiently, without having to shut down equipment. Measure
hot, moving, electrically energized, and hard-to-reach objects instantly. Check
motors, insulation, breakers, radiant heating, pipes, corroded connections, and
wires. Plus, scan ducts, and other hard-to-reach objects from the floor and
leave your ladder in the truck.
You can also use the Fluke 561's handy flexible pipe probe
(included) to take super-heat or internal temperatures. Or plug in any industry
standard type K mini connector thermocouple probe to take those measurements
and preserve your investment in thermocouples you already own.
Specifications: 561 HVAC Infrared & Contact Thermometer
General
Specifications | |
Temperature | -40 to 550°C (-40 to 1022°F) |
Display resolution | 0.1°C (0.1°F) of reading |
D:S (distance to spot size) | 12:1 |
Easy emissivity selector | Adjustable with three settings: |
Low (0.3), medium (0.7). high (0.95) | |
Display accuracy [assumes ambient operating temperature of
23°C (73°F) to 25°C (77°F)] | ±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever
is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1° |
Response time | 500 mSec (95% of reading) |
Repeatability | ±0.5% of reading or ±1°C (±2°F), whichever is greater |
Spectral response | 8 µm to 14 µm |
Laser sighting | Single point laser |
Laser shutoff | Laser turns off above ambient temperature of 40°C (104°F) |
Laser power | Class 2(II) operation; Output < 1 mW, wavelength
630-670 nm |
Relative humidity | 10% to 90% RH non-condensing, at < 30°C (86°F) |
Power, battery life | 2 AA batteries (alkaline or NiCD) |
Battery life | 12 hours |
Display hold | 7 seconds |
Backlit display | Yes, LCD with dual temperatures (current and
MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options |
Operating temperature | 0°C to 50°C (32°F to 120°F) |
Storage temperature | -20°C to 65°C (-25°F to 150°F) |
MAX, MIN, DIF temperatures | Yes |
Thermocouple Type K mini adapter input | Yes, compatible with industry standard K type probes with
mini-connector. Displays to the thermometer temperature range. |
Thermocouple Type K fabric hook-and-loop fastener pipe
probe | Yes, with a temperature range of 0°C to 100°C (32°F to
212°F) and accuracy of ±2.2°C (±4°F) |
HVAC measurement guide | Yes |
