- Stock: In Stock
- Model: Mini Infrared Thermometer (-30°C to 500°C)

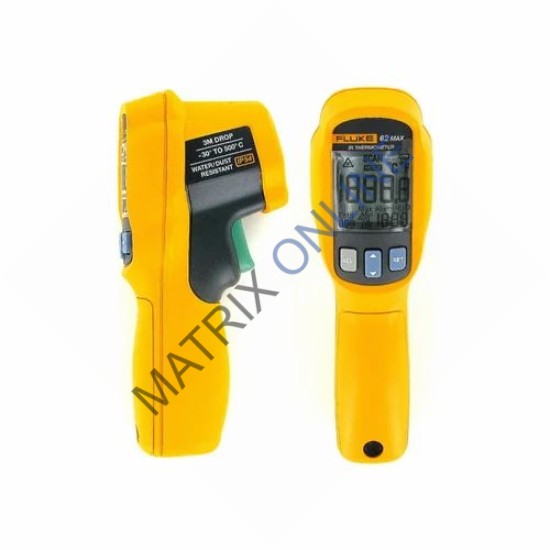

Product overview: 62 MAX Mini Infrared Thermometer
Fluke 62 Max Infrared Thermometer delivers single-laser
targeting accuracy
The Fluke 62 MAX Infrared thermometer delivers many of the
features of the Fluke 62 MAX+, but features a single laser and 10:1 distance to
spot ratio. You can use the Fluke 62 MAX to perform non-contact temperature
measurements on transformers, motors, pumps, panels, breakers, compressors,
duct, steam lines, valves, and vents. It is small in size and extremely easy to
use. The single laser helps you pinpoint the target for more accurate readings
and makes it easier to measure temperatures in hard to reach areas. With its
IP54 rating for dust and water resistance you can rely the Fluke 62 MAX to
deliver accurate, repeatable temperature measurements, rain or shine, in even
the dirtiest and dustiest industrial sites. And it’s rugged enough to take a
3-meter drop so no worries even if you work from a ladder.
Specifications: 62 MAX Mini Infrared Thermometer
Specifications | |
Temperature range | -30°C to 500°C (-22°F to 932°F) |
Accuracy | ±1.5°C or ±1.5% of reading, whichever is greater |
Response time (95%) | < 500 ms (95% of reading) |
Spectral response | 8 to 14 microns |
Emissivity | 0.10 to 1.00 |
Optical resolution | 10:1 (calculated at 90% energy) |
Display resolution | 0.1°C (0.2°F) |
Repeatability of readings | ±0.8% of reading or < ±1.0°C (2°F), whichever is
greater |
Power | AA battery |
Battery life | 10 hours with laser and backlight on |
Physical Specifications | |
Weight | 255 g (8.99 oz) |
Size | 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in) |
Operating temperature | 0°C to 50°C (32°F to 122°F) |
Storage temperature | -20°C to 60°C (-4°F to 140°F), (without battery) |
Operating humidity | 10% to 90% RH non-condensing at 30°C (86°F) |
Operating altitude | 2000 meters above mean sea level |
Storage altitude | 12,000 meters above mean sea level |
IP rating | IP 54 per IEC 60529 |
Drop test | 3 meters |
Vibration and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
Electromagnetic compliance | IEC 61326-1: Portable electromagnetic equipment |
Safety | IEC 61010-1: Pollution degree 2 |
