- Stock: In Stock
- Model: Current Loop Calibrator with Quick Click Knob
Product overview:

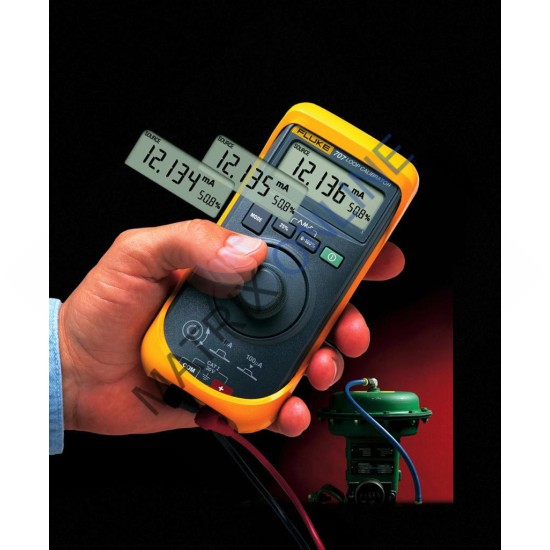

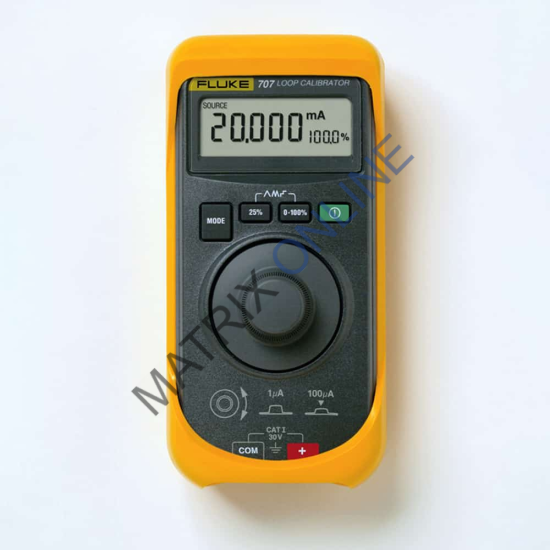

Fluke 707 Current Loop Calibrator with Quick Click Knob
Fluke 707 Loop
Calibrator delivers fast, one-handed, push-button loop checks
The Fluke 707 loop calibrator is a high performance solution
for calibration, repair, and maintenance of current loops. It combines the best
features of a push-button and knob-base loop calibrator, for extremely fast and
easy calibration. The large display and simple quick click rotary button lets
you make quick selections and adjustments with one hand. Plus, features such as
mA sourcing, simulation, and measurement; simultaneous display of mA and % of
span, and selectable step or ramp outputs, helps you work more efficiently and
accurately. And you can quickly change the 9V battery without breaking the
calibration seal.
Specifications: Fluke 707 Current Loop
Calibrator with Quick Click Knob
Specifications | ||
Current measurement | Range | 0 to 24 mA |
Resolution | 0.001 mA | |
Accuracy | 0.015% Rdg + 2 LSD | |
Current sourcing | Range | 0 to 20 mA or 4 to 20 mA |
Accuracy | 0.015% Rdg + 2 LSD | |
Drive capability | 1200 Ω 950 Ω at 20 mA in HART mode | |
Current simulation | Range | 0 to 20 mA or 4 to 20 mA |
Accuracy | 0.015% Rdg + 2 LSD | |
Ext. loop voltage requirement | 12-30 V | |
Loop power | While measuring mA, 24 V | |
Voltage measurement | Range | 0 to 28 V DC |
Resolution | 1 mV | |
Accuracy | 0.015% Rdg + 2 LSD | |
Environmental
Specifications | ||
Operating temperature | -10°C to 55°C | |
Storage temperature | -30°C to 60°C | |
Humidity (without condensation) | 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C) | |
Temperature coefficient | -10°C to 18°C, 28°C to 55°C, ±.005% of range per °C | |
Safety
Specifications | ||
Safety | CSA C22.2 No. 1010.1:1992 | |
EMC | EN50082-1:1992 and EN55022:1994 Class B | |
Maximum voltage | 30 V | |
Mechanical and
General Specifications | ||
Size | 152 x 70 x 41 mm | |
Weight | 224 g (340 g including holster) | |
Batteries | One 9 V battery Alkaline | |
Shock and vibration | Per MIL-T-28800 for a Class 2 Instrument | |
Display current and % of span | Yes | |
Auto step, auto ramp | Yes | |
Span check | Yes | |
