- Stock: In Stock
- Model: Volt/mA Loop Calibrator
Product overview:

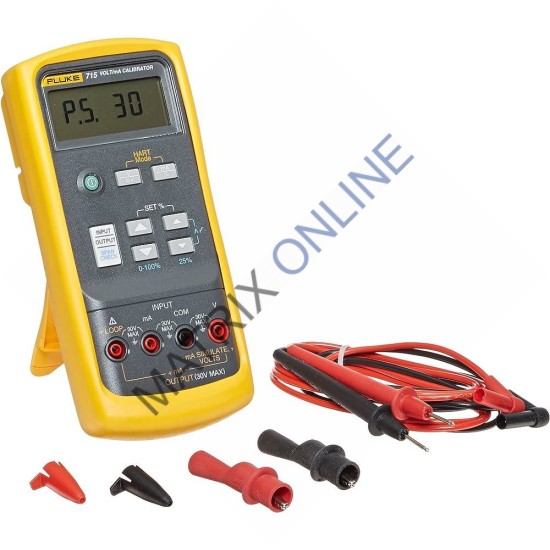

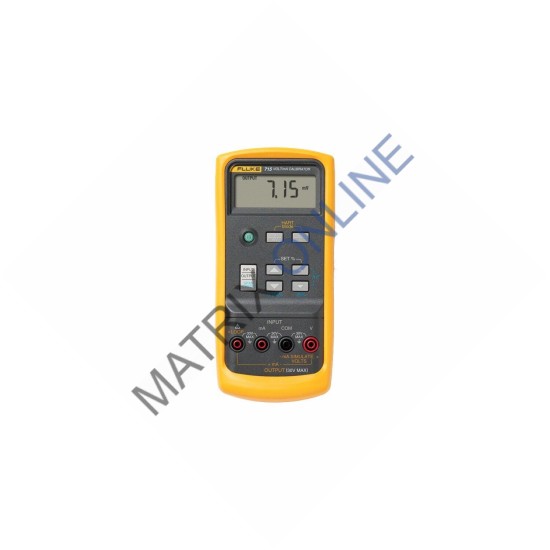

Fluke 715 Volt/mA Loop Calibrator
Compact, lightweight,
full-featured mA loop calibrator
The Fluke 715 Volt mA Calibrator delivers outstanding
performance, durability, and reliability in a compact, lightweight tool.
Offered in the rugged Fluke 80 Series digital multimeter package, the
calibrator measures loop current as well as voltage output. It sources voltage
to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01
% accuracy, and 1 µA resolution, and measures voltage output process signals
from PLCs and transmitters. It can source or simulate 4-20 mA loop current and
provides a 24 V loop supply with simultaneous current measurement.
Specifications: Fluke
715 Volt/mA Loop Calibrator
Functional
Specifications | ||
Measure / Source mV | Range | 0 to 200 mV |
Resolution | 0.01 mV | |
Accuracy | 0.015% + 2 counts | |
Measure / Source V | Range | 0 to 20 V |
Resolution | 0.001 V | |
Accuracy | 0.01% + 2 counts | |
Measure / Source/ Simulate mA (% of span) | Range | 0 to 24 mA (-25% to 125%) |
Resolution | 0.001 mA | |
Accuracy | 0.01% + 2 counts | |
Sink (simulate transmitter) display mA or % of span | ||
Specifications | ||
Loop power | Range | 24 V DC |
Accuracy | ±10% | |
Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for
battery 5.8 to 6.8 V | ||
Display | Clear 5 digit LCD | |
Environmental
Specifications | ||
Operating temperature | -10°C to 55°C | |
Storage temperature | -40°C to 60°C | |
Humidity (without condensation) | 95% (10°C to 30°C) | |
75% (30°C to 40°C) | ||
45% (40°C to 50°C) | ||
35% (50°C to 55°C) | ||
Operating altitude | 3,000 m max | |
Safety
Specifications | ||
Safety | CSA C22.2 No. 1010.1:1992 | |
Mechanical and
General Specifications | ||
Size (L x W x D) | 187 x 87 x 32 mm | |
(7.93 x 3.86 x 2.06 in) | ||
Weight | Approx. 330 g | |
(21 oz) | ||
Shock and vibration | Random, 2 G, 5-500 Hz | |
1 m drop test | ||
Battery type | Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline | |
