- Stock: In Stock
- Model: Milliamp Process Clamp Meter

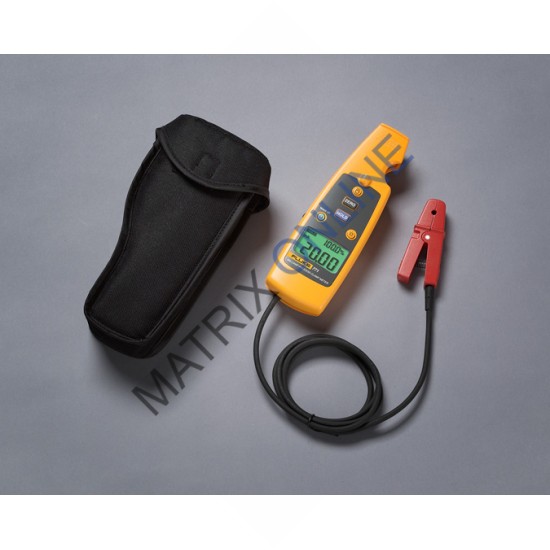

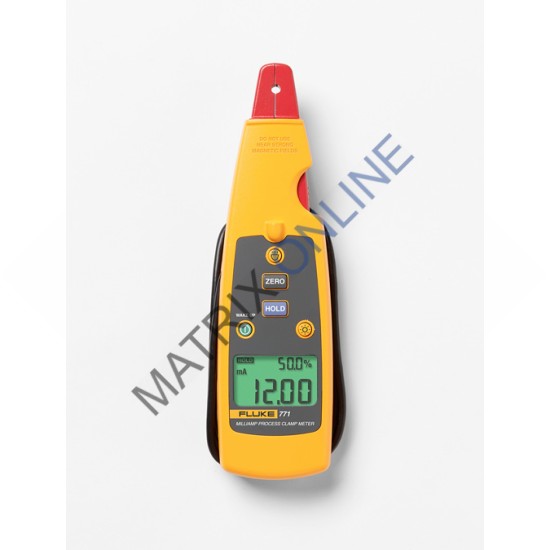

Product overview: Fluke 771 Milliamp
Process Clamp Meter
Save time by
measuring 4-20 mA signals without breaking the loop
The Fluke 771 delivers all the basic functionality you would
expect in a milliamp clamp meter. It measures 4-20 mA signals without
"breaking the loop," allowing you to measure low level DC current
without having to take systems offline for troubleshooting, saving downtime and
money. You can also use it to measure output signals from transmitters without
breaking the loop when maintaining and troubleshooting process and automation
equipment. This saves time and avoids disrupting critical processes so you can
avoid expensive downtime. You can also measure 10 to 50 mA signals in older
control systems using the 99.9 mA range.
Key Features
Measures 4 to 20 mA signals without breaking the loop
Best in class 0.2% accuracy
Delivers 0.01 mA resolution and sensitivity
Measures mA signals for PLC and control system analog I/O
Detachable clamp for measurements in tight locations
Specifications: Fluke 771 Milliamp
Process Clamp Meter
Specifications | ||||
Diameter of measurable conductor | 0.177 in or 4.5 mm max | |||
Operating temperature | -10 to 50°C | |||
Storage temperature | -25 to 60°C | |||
Operating humidity | < 90% @ < 30°C, < 75% @ 30 to 55°C | |||
Operating altitude | 0 to 2000 m | |||
IP rating | IP 40 | |||
Size | 59 x 38 x 212 mm (2.32 x 1.5 x 8.35 in) | |||
Weight | 260 G, (9.1 oz) | |||
Vibration | Random 2 g, 5 to 500 Hz | |||
Shock | 1 m drop test (except the jaw) | |||
EMI/RFI | Meets EN61326-1 | |||
For current measurement w/ JAW, add 1 mA to | ||||
Temperature coefficient | 0.01% °C | |||
Power, battery life | (2) AA 1.5 V Alkaline, IEC LR6, 40 hours typical | |||
| ||||
Functional
Specifications | ||||
mA measurement | Resolution / range | 0 to 20.99 mA | ||
Accuracy | 0.2% + 2 counts | |||
Resolution / range | 21.0mA to 100.0 mA | |||
Accuracy | 1% + 5 counts | |||
