- Stock: In Stock
- Model: Deluxe Automotive Multimeter
Product overview:

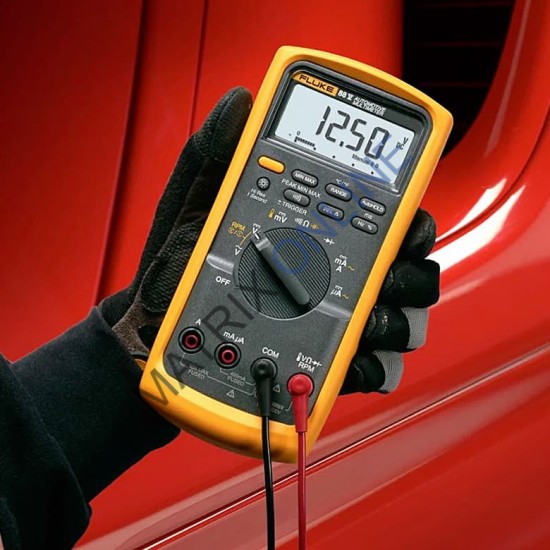

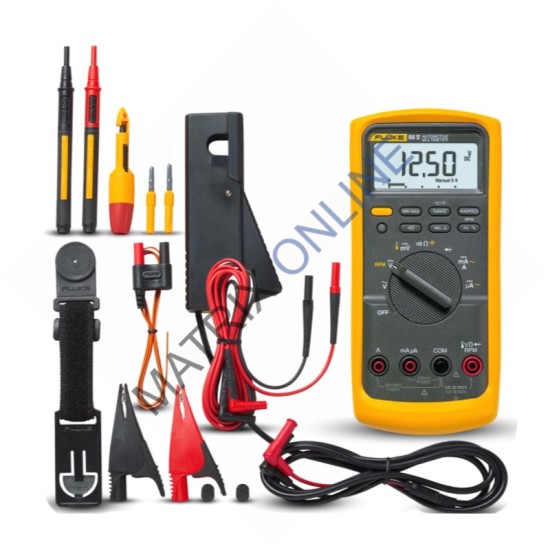

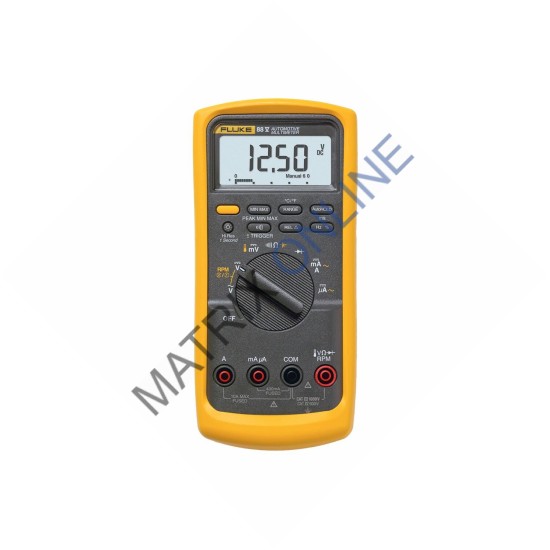

Fluke 88V Deluxe Automotive Multimeter
The Fluke 88V meter has measurement functions,
troubleshooting features, and accuracy levels needed to solve problems on
conventional and hybrid vehicles. The 88V is the most powerful automotive
multimeter ever offered by Fluke. In addition to standard multimeter features
such as the ability to measure voltage, current, continuity, and resistance,
the 88V can perform:
Specifications: Fluke
88V Deluxe Automotive Multimeter
Technical
Specifications | ||
DCV | Maximum voltage | 1000 V |
Accuracy | ±(0.1% + 1) | |
Best resolution | 0.01 mV | |
ACV | Maximum voltage | 1000 V |
Accuracy | ±(0.5% + 2) | |
AC bandwidth | 5 kHz | |
Best resolution | 0.01 mV | |
DC current | Maximum amps | 10 A |
Amps accuracy | ±(0.4 % + 2) | |
Best resolution | 0.001 mA | |
AC current | Maximum amps | 10 A |
Amps accuracy | ±(1.2% + 2) | |
Best resolution | 0.001 mA | |
Resistance | Maximum resistance | 50 MΩ |
Accuracy | ±(0.4% + 1) | |
Best resolution | 0.1 Ω | |
Capacitance | Maximum capacitance | 9,999 µF |
Accuracy | ±(1% + 2) | |
Best resolution | 0.01 nF | |
Frequency | Maximum frequency | 200 KHz |
Accuracy | ±(0.005% + 1) | |
Best resolution | 0.01 Hz | |
Duty cycle | Maximum duty cycle | 99.9% |
Accuracy | within 2% per KHz + 0.1% | |
Best resolution | 0.1% | |
Temperature measurement | -200.0°C – 1090°C | |
80 BK temperature probe | -40 °C – 260°C | |
Conductance | Maximum conductance | 60.00 nS |
Accuracy | ±(1.0% + 10) | |
Maximum resolution | 0.01 nS | |
Operating range | Operating temperature | -20°C – 55°C |
Storage temperature | -40°C – 60°C | |
Physical | 5.2 x 9.8x 20.1 cm (2.06 x 3.86 x 7.93 in) | |
