- Stock: In Stock
- Model: Motor and Phase Rotation Indicator
Product overview:

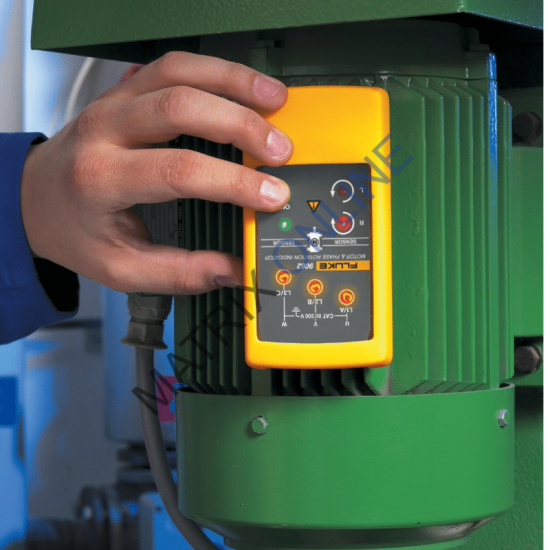

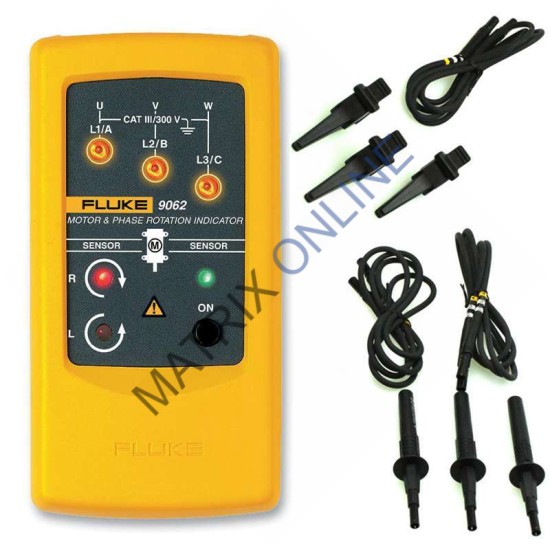

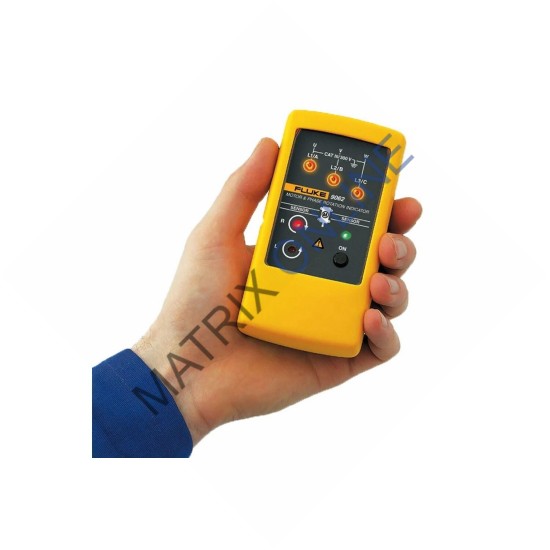

Fluke 9062 Motor and Phase Rotation Indicator
Unique phase rotation indicator with motor rotation ability
The unique Fluke 9062 provides rotary field and motor
rotation indication with the benefits of contact-less detection. Purpose made
for commercial and industrial environments, the Fluke 9062 provides rapid
indication of 3 phase rotation using test leads supplied or can be used to
determine motor rotation on synchronous and asynchronous 3 phase motors. The
contact-less detection is ideal for use on motors where the shaft is not
visible. The included test probes have a variable clamping range for safe
contact, also in industrial sockets.
Specifications: Fluke
9062 Motor and Phase Rotation Indicator
Technical
specifications | |
Voltage range | Up to 400 V |
Phase display | 120-400 V AC |
Frequency range | 2-400 Hz |
Operating timer | Continuous |
Environmental specifications | |
Operating temperature | 0 °C to 40 °C |
Operating altitude | Up to 2000m |
Humidity (without condensation) | 15% to 80% |
Dust/water resistance | IP 40 |
Safety specifications | |
Electrical safety | EN 61010, |
EN 61557-7 | |
Overvoltage category | CAT III, 300 V |
Mechanical and general specifications | |
Size | 124 x 61 x 27 mm |
Weight | 1 x 9 V |
Batteries | 1 x 9 V |
