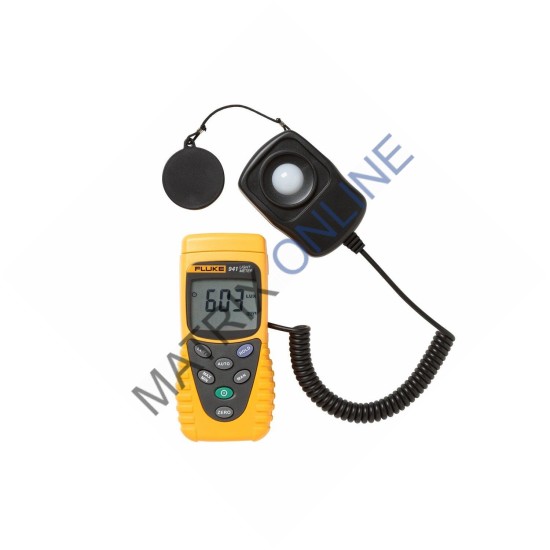

product overview: Fluke 941 Light Meter

Designed for use in multiple environments, the Fluke 941 light meter is easy to use and provides clear data display for a variety of applications.

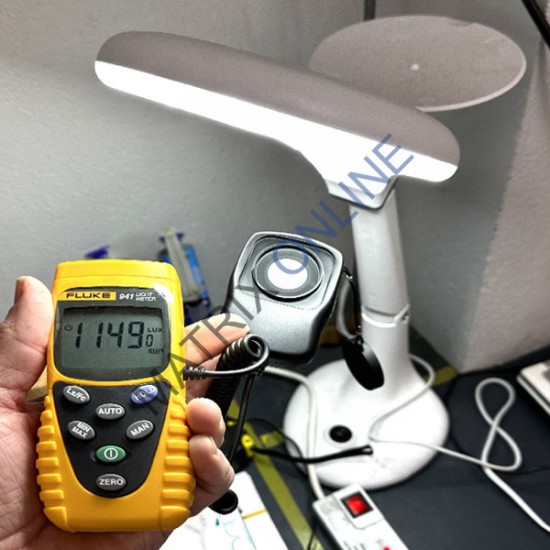

The Fluke 941 is a handheld luminometer than can measure visible light sent from a variety of light sources, to include fluorescent, metal halide, high pressure sodium, or incandescent lamps. With an extension cord to the light meter and separate display the Fluke 941 provides a handheld tool to accurately measure light in multiple environments. The Fluke 941 is a portable tool that measures light up to 20,000 fc of lux with an accuracy of .01 fc/lux.

Specifications: Fluke 941 Light Meter

Measurement parameter

Range

20, 200, 2000, 20000, 200000 Lux
20, 200, 2000, 20000FC (footcandle)

Precision

±3% (at 2854°K - calibrated by the common incandescent lamp)
±6% other visible light sources
Cosine error
30°±2%
60 °±6 %
80 °±25 %
Cosine angle corrected according to the grade A general specifications of JIS C 1609:1993 and CNS 5119 A



Specifications

Sampling rate:

2.5 times/second for the digital display

Display:

3½ digit 1999-point LCD screen

Sensor:

Silicon photoelectric diode and optical filter

Environment:

For indoor use

Power supply:

9V NEDA 1604, IEC 6LR61

Battery life:

200 hours; in about 6 minutes after auto power-off

Dimension
(main unit)

130 × 63 × 38 mm

Dimension (sensor)

80 × 55 × 29 mm

Weight:

220 g (including the battery)
