- Stock: In Stock
- Model: Pocket Thermal Camera
Product overview:

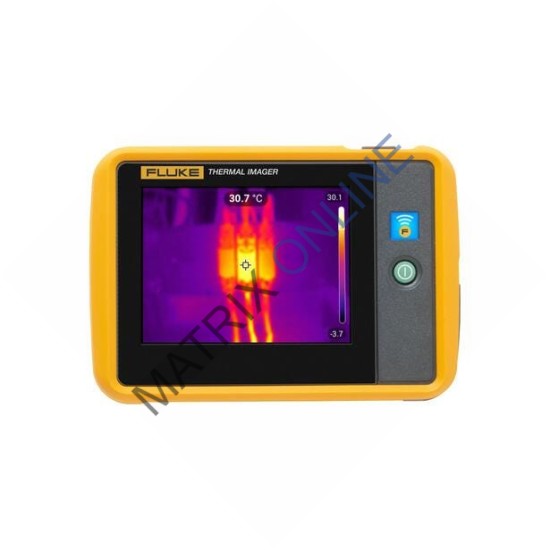

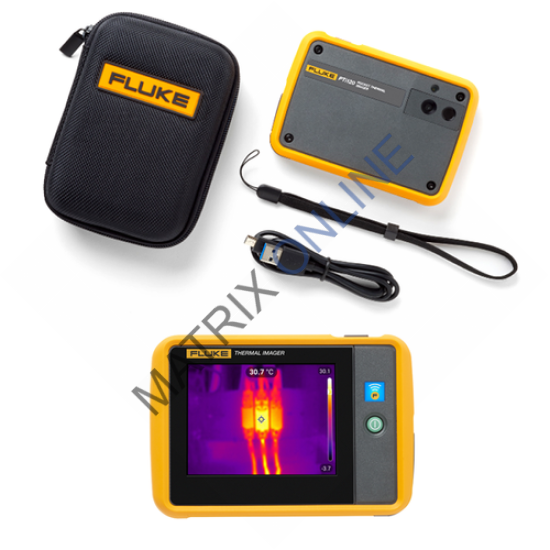

Compact Fluke PTi120 Pocket Thermal Camera

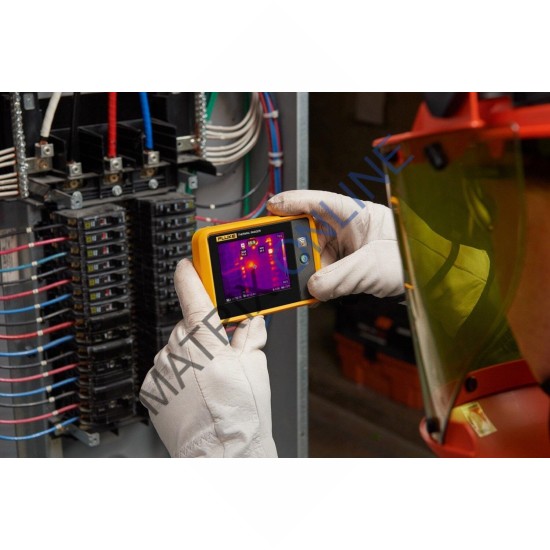

Portable thermal
camera for industrial inspection
In the right place. At the right time. With the right tool.
The bigger the problem, the faster you need to solve it. The
Fluke Pocket Thermal Camera puts the power to minimize downtime in everyone’s
hands. The first line of defense for easy troubleshooting. Stop fighting fires
on the job, start preventing them.
Specifications:
Compact Fluke PTi120 Pocket Thermal Camera
Key Features | |
IFOV (spatial resolution) | 7.6 mRad |
Infrared resolution | 120 x 90 (10,800 pixels) |
Field of view | 50° H x 38° V |
Distance to spot | 130:1 |
Temperature measurement range (not calibrated below -10
°C) | -20 °C to 400 °C |
Focus system | Fixed focus, minimum focus distance 22.8 cm |
USB | Mini USB used to transfer image to PC |
Wifi | Yes |
Image quality | |
IR-Fusion technology | Yes, adds the context of the visible details to your
infrared image |
AutoBlend mode | Continuous 0% to 100% |
Touchscreen display | 3.5’’ (landscape), 320 x 240 LCD |
Rugged, ergonomic design | Yes |
Thermal sensitivity (NETD) | 60 mK |
Frame rate | 9 Hz |
Data storage and
image capture | |
Memory | 2GB internal flash memory |
Image capture, review, save mechanism | One-handed image capture, review, and save capability |
Image file formats | Non-radiometric (jpeg), or fully radiometric (.is2); no
analysis software required for non-radiometric (jpeg) files |
Software | Fluke Connect® desktop software—full analysis and
reporting software with access to the Fluke Connect system |
Export file formats with software | JPG, IS2 |
Measurement range | -20 °C ~ 400 °C |
Battery | |
Batteries (rechargable) | Internal rechargeable lithium ion battery |
Battery life | ≥ 2 hours continuous (without WiFi) |
Battery charging time | ≤ 1.5 hours |
Battery charging system | Mini USB cord from product to PC |
AC operation | With separate AC to USB adapter. Not included in box. |
Power saving | Automatic Shutdown: |
Temperature
measurement | |
Temperature measurement range (not calibrated below -10
°C) | -20 °C to 400 °C |
Accuracy | Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2% |
On-screen emissivity correction | Yes |
On-screen reflected background temperature compensation | Yes |
Color palettes | |
Standard palettes | 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal,
Grayscale |
General
specifications | |
Infrared spectral band | 8 μm to 14 μm (long wave) |
Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
Relative humidity | 95% non-condensing |
Center-point temperature | Yes |
Spot temperature | Hot and cold spot markers |
Safety | EN 61010-1: CAT none, pollution degree 2, EN 60825-1:
Class 2, EN 60529, EN 62133 (lithium battery) |
Electromagnetic compatibility | EN301 489-1 V2.1.1 EN301489-17 V3.1.1 |
US FCC | CFR, Part 15C |
Vibration and shock | 2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
Drop | 1 meter |
Size (H x W x L) | 8.9 cm x 12.7 cm x 2.5 cm |
Weight (battery included) | 0.233 kg (0.514 lb) |
Enclosure rating | IP54 |
