- Stock: In Stock
- Model: Thermal Imaging Camera

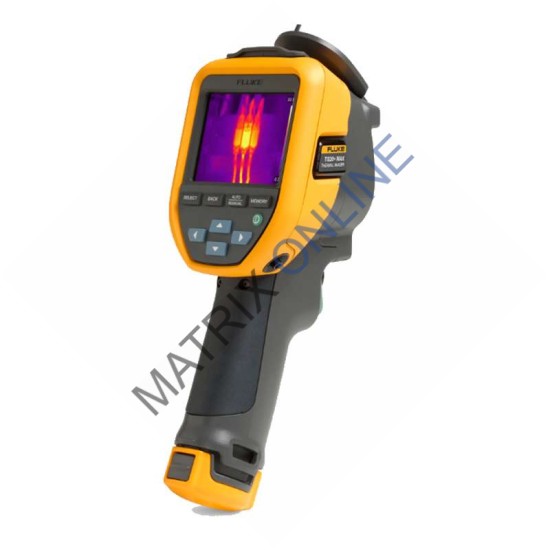

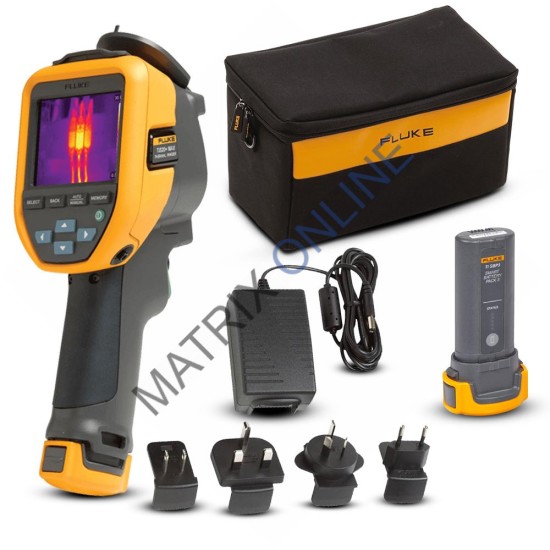

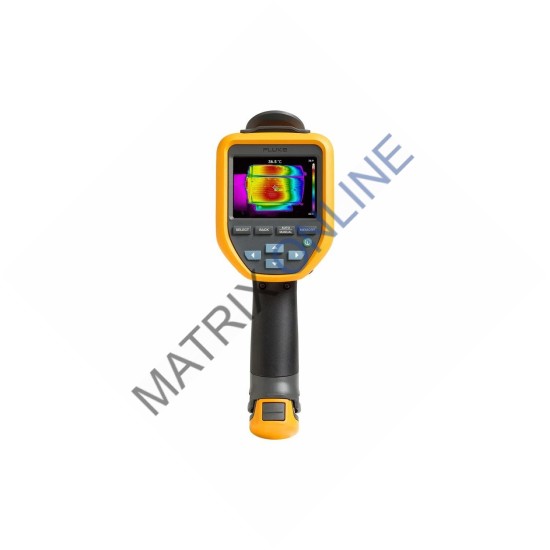

Product overview: Fluke TiS20+ /
TiS20+ MAX Thermal Imaging Camera
Save time with the right level of infrared and analysis
Whether you are up on the roof inspecting heating,
ventilation and air conditioning, deep in the plant scanning a motor, or if you
are locking out an electrical panel, you rely on your tools to have the power
and features to get your job done fast.
Key Features
Continuous touchscreen IR-Fusion™
5 hours battery life
Can withstand drop up to 2 meter
Water and dust resistant—IP54 enclosure rating
Automatically organize and file thermal images with Fluke
Connect™ Asset Tagging
120 x 90 infrared resolution
Specifications: Fluke TiS20+ / TiS20+
MAX Thermal Imaging Camera
Key features | |
Infrared resolution | 120 x 90 (10,800pixels) |
IFOV (spatial resolution) | 7.6 mRad, D:S 130:1 |
Field of view | 50° H x 38° V |
Minimum focus distance | 50cm (20 inches) |
Focus system | Fixed focus |
Data transfer | Mini USB used to transfer image to PC |
Wireless connectivity | Yes, (802.11 b/g/n (2.4 GHz)) |
Fluke Connect instant upload | Yes, connect your camera to your building’s WiFi network
(802.11 b/g/n (2.4 GHz)), and images taken automatically upload to the Fluke
Connect system for storage and viewing on your PC |
Image quality | |
IR-Fusion technology | AutoBlend continuous 0 % to 100 %. Adds the context of the
visible details to your infrared image |
Display | 3.5" LCD touchscreen (landscape) |
Display resolution | 320 x 240 LCD |
Thermal sensitivity (NETD) | 60 mK |
Frame rate | 9 Hz |
Data storage and
image capture | |
Memory | Internal 4GB memory (includes slot for optional micro SD
card up to 32GB) |
Image capture, review, save mechanism | One-handed image capture, review, and save capability |
Image file formats | Non-radiometric (jpeg), or fully radiometric (.is2); no
analysis software required for non-radiometric (jpeg) files |
Software | Fluke Connect desktop software—full analysis and reporting
software with access to the Fluke Connect system |
Export file formats with software | JPG, IS2 |
Battery | |
Batteries (field-replaceable, rechargable) | Lithium ion smart battery pack with five-segment LED
display to show charge level |
Battery life | ≥ 5 hours continuous (without WiFi) |
Battery charging time | 2.5 hours to full charge |
Battery charging system | In-imager charging. Optional 12 V automotive charging
adapter |
AC operation | AC operation with included power supply (100 V AC to 240 V
AC, 50/60 Hz) |
Power saving | Automatic Shutdown: 5, 10, 15 and 20 minutes or never |
Temperature
measurement | |
Temperature measurement range (not calibrated below -10
°C) | TiS20+: -20 °C to 150 °C (-4°F to 302°F) TiS20+ MAX -20 °C
to 400°C (-4°F to 752°F) |
Accuracy | Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2 % at
25 °C, whichever is the greater. |
On-screen emissivity correction | Yes, material table |
On-screen reflected background temperature compensation | Yes |
Center-point temperature | Yes |
Spot temperature | Hot and cold spot markers |
Color palettes | |
Standard palettes | 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal,
Grayscale |
General
specifications | |
Infrared spectral band | 8 μm to 14 μm (long wave) |
Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) |
Storage temperature | -20 °C to 50 °C without batteries |
Relative humidity | 95 % non-condensing |
Safety | IEC 61010-1: Pollution Degree 2 |
Electromagnetic compatibility | EN 61326-1, CISPR 11: Group 1, Class A |
US FCC | CFR, Part 15C |
Vibration and shock | 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC
60068-2-27 |
Drop | Engineered to withstand 2 meter drop |
Size (H x W x L) | 26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in) |
Weight | 0.72 kg (1.6 lb) |
Enclosure rating | IP54 (protected against dust, limited ingress; protection
against water spray from all directions) |
Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian,
Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese,
Spanish, Swedish, Traditional Chinese, and Turkish |
