- Stock: In Stock
- Model: Visual IR thermometer Model#: Fluke VT06
Product overview:

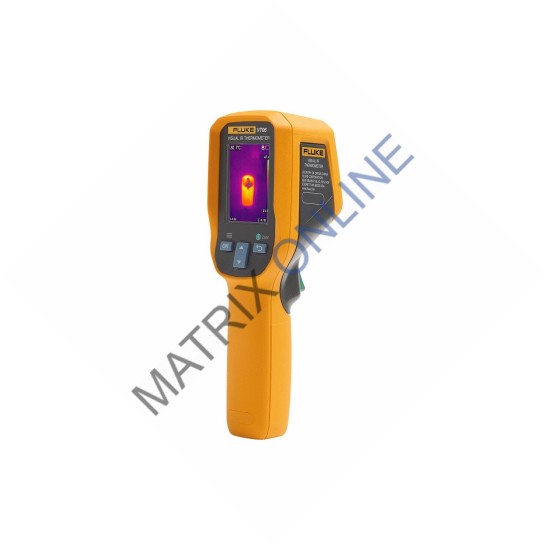

Fluke VT06 Visual IR thermometer
Fluke VT series is built with legendary Fluke ruggedness and
quality. With compact design and upgraded function, the temperature measurement
is visualized, so that you can obtain a clear and accurate infrared thermal
image.
Specifications: Fluke
VT06 Visual IR thermometer
Thermal image and
optics | VT08 | VT06 |
Infrared resolution | 120×90 | |
IR frequency band | 7.5~14 μm(long wave) | |
Frame rate | 9 Hz | |
Thermal sensitivity/NETD | <60 mk | |
Field of view (H x V) | 50° x 37.5° | |
Spatial resolution | 7.6 mrad | |
Focus system | Focus free | |
Minimum focusing distance | 0.5 m (19.7 in) | |
Visible light | ||
Visible resolution | 320×240 | NA |
Visible FOV (H x V) | 53° x 41° | NA |
Image display and
storage | ||
Image mode | Thermal image | Thermal image |
Palettes | Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal,
Grayscale | |
Internal storage | >28GB (>100000 images) | |
File format | JPEG compression format (.jpg) | |
PIP mode | Yes | No |
Temperature
measurement | ||
Temperature range | -20 °C to 400 °C | |
Temperature accuracy | ±2°C or 2% @ 23°C±5°C, whichever is greater | |
Emissivity | Adjustable | |
Background temperature compensation | Yes | |
Auto high-/low-temperature capture | Yes | |
Center point temperature | Yes | |
Alarm | Maximum/minimum temperature alarm in full screen | |
Interface and lens | ||
Visible lens | Yes | No |
Flashlight | Yes | No |
Infrared lens | Yes | |
Laser sighting | Yes | |
Type-C interface | Yes | |
TF card slot | No | |
Tripod interface | Yes | |
Mobile App | No | |
Power system | ||
Battery type | Rechargeable Li-ion battery, unremovable | |
Battery operation time | ≥5 hrs (VT08) | |
Charging Time | <2.5 hrs to full | |
Battery charging temperature | 0 °C to 45 °C | |
Battery charging system | Charge in the machine (the battery is not removable) | |
AC adapter | Include power supply, universal adapter | |
Power saving mode | Yes | |
Environmental
specifications | ||
Operating temperature | -10 °C to 50 °C | |
Storage temperature | -40 °C to 70 °C | |
Operating altitude | 2000 m (1.24 mi) | |
Storage altitude | 12 000 m (7.5 mi) | |
Others | ||
Standard accessories | Wrist strap, quick reference guide, charger + adapter,
Type-C data cable, data-downloading card | |
Display | 6.096 cm (2.4-inch) LCD | |
Language | English | |
Size | 20.4 cm x 6.6 cm x 7.6 cm | |
Weight | 0.36 kg | 0.35 kg |
Relative humidity | ≤90%, non-condensing | |
Safety | ||
Safety standards | IEC 61010-1: Pollution Degree 2 | |
Laser | IEC 60825-1: Class 2, 650 nm, <1 mW | |
Battery | IEC 62133-2, UN 38.3 | |
Protection class | IEC 60529: IP65 (with Type-C port closed) | |
Drop test | 2 m | |
Electromagnetic
Compatibility (EMC) | ||
International | IEC 61326-1: Industrial Electromagnetic Environment | |
