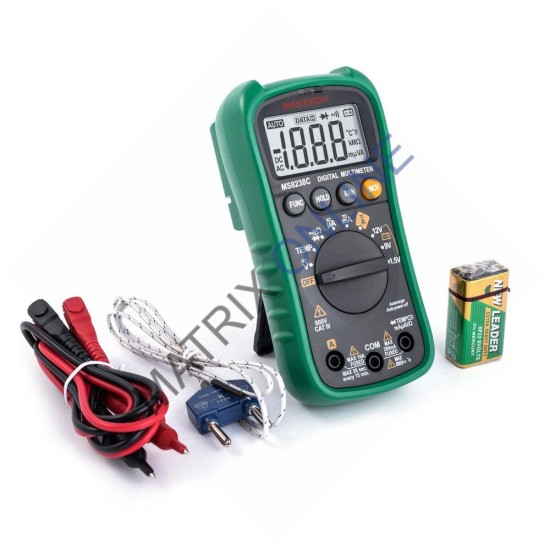

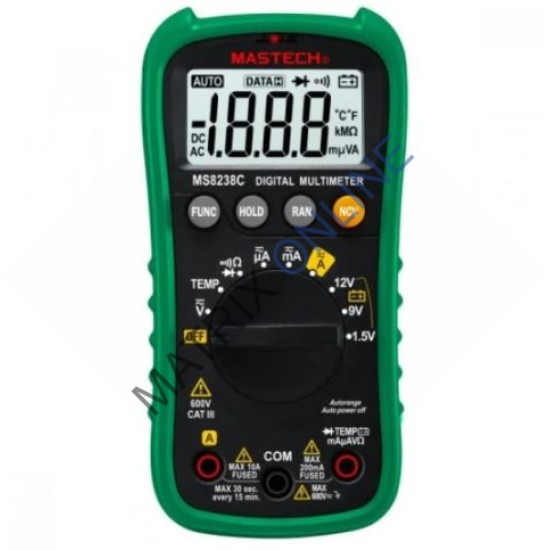

MS8238C Digital Multimeter with NCV

MS8238C Mastech Digital Multimeter with NCV

The MS8238C is a small, safe and reliable 3 1/2 digit handheld multimeter. This meter can measure AC/DC voltage, AC/DC current, resistance, diode, continuity, battery test and non-contact voltage tests. This tool is ideal for professionals and hobbyists alike.

Features:

• Safety Rating: CAT II 600V; pollution degree: II

• Operating Altitude: <2000m

• Operating TEMP/Humidity:0~40℃,<80%RH

• Storage TEMP/Humidity:-10~60℃,<70%RH, remove battery

• Temperature coefficient: 0.1 xaccuracy/℃ (>18℃ or <28℃)

• Max. Input between terminals and earth ground: 600V DC or AC rms

• Fuse Protection:

• µA/mA ranges: FF400mA H 600V

• 10A range: FF 10A H 600V

• Sample Rate: Approx. 3 time/sec.

• Display: 3 ½ digit LCD display

• Overload Indication: Display show "OL"

• Low Battery Indication: When battery voltage drop below normal operating voltage,is shown on the display

• Polarity Indication: Display automatically displays"-"

• Power Supply: DC 9V, NEDA 1604 or 6F22

• Size (LxWxH): 148x73.5x50mm

• Weight: about 232g

Features:

• Display: 2000 counts

• Auto ranging

• Auto Power Off

• Diode: 2.7V

• Continuity Buzzer: <30Ω

• Data hold

• Non-contact Voltage Detection

• Low Battery Display
