- Stock: In Stock
- Model: IntelliTone™ Pro 200 Toner and Probe Kit
Product overview: Fluke Networks

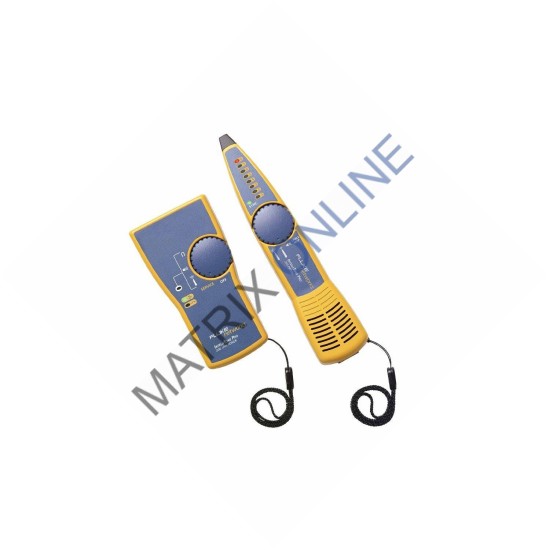

MT-8200-60-KIT IntelliTone™ Pro 200 Toner and Probe Kit
The first network cable toner and probe to offer digital and
analog signaling all in one network toner and probe. Use digital mode to trace
and locate data cabling safely and effectively on active networks. Use analog
mode to isolate individual wire pairs and trace voice, audio and video cabling.
Key features
Locates cables safely and effectively on active networks

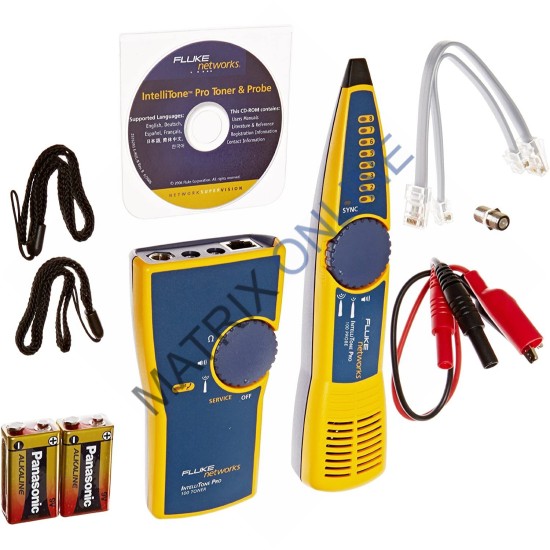

Kit includes IntelliTone™ toner, probe, adapters, patch
cables, and test leads
Verifies twisted pair installation with end to end
continuity test
IntelliTone™ digital toning eliminates noise and false
signals
SmartTone analog toning isolates individual wire pairs
Specifications: Fluke Networks
MT-8200-60-KIT IntelliTone™ Pro 200 Toner and Probe Kit
General
specifications | |
Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
Storage temperature | -4 °F to +140°F (-20 °C to °C) |
Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C) |
Vibration | Random, 2 g, 5 Hz-500 Hz |
Shock | 1 m drop test |
Safety | EN 61010-1, Category: None |
Altitude | 3000 m |
EMC | EN 61326-1, FCC Part 15 B |
Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
Applications | Copper cabling media including; 75 or 50 Ohm Coaxial
cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100
Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable
Map function of the IntelliTone 200. |
Toner
specifications | |
Dimensions | 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) |
Display | LED |
Control | Thumbwheel switch |
Toner interface | Main Mod8 port for tone generation on all 4 pairs of UTP /
STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two
conductor wiring |
Toner frequency | IntelliTone™ signal: encoded digital signal |
Ouptut power | 5 V p-p |
Auto power down | Turns off automatically after 2 1/2 hours of inactivity |
Probe
specifications | |
Dimensions | 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm) |
Display | (8) LED indicators, Sync LED indicator |
Audio | IntelliTone: Microprocessor controlled audio files |
Control | Thumbwheel switch, volume control wheel |
Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate,
and Cable Map |
Toner interface | Main Mod8 port for Cable Map on all 4 pairs of UTP / STP
cabling. |
Auto power down | Turns off automatically after 1 hour of inactivity |
