- Stock: In Stock
- Model: UT50C UNI-T

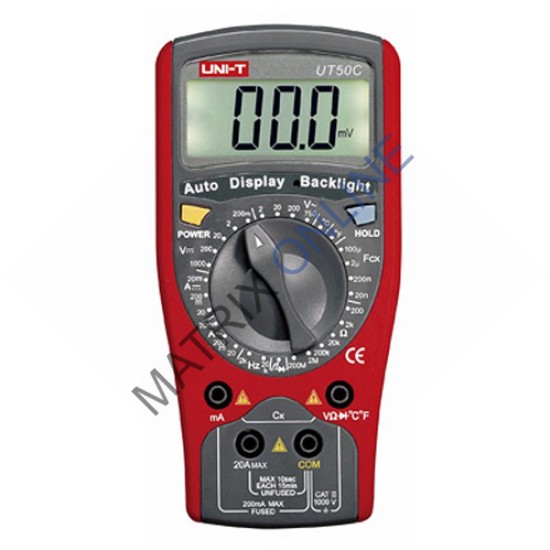

UNI-T UT 50-II SERIES digital multimeter UT-50C with AC
current measuring range of 20 mA/200mA/20A modern design with automatic
backlight. is an electronic measuring instrument that combines several
measurement functions in one unit. A typical multimeter can measure voltage,
current, and resistance. Analog multimeters use a microammeter with a moving
pointer to display readings.
Specifications | Range | Best Accuracy |
Model | UT50C | |
DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
DC Current (A) | 20mA/200mA/20A | ±(0.8%+1) |
AC Current (A) | 20mA/200mA/20A | ±(1%+3) |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) |
Capacitance (F) | 20nF/200nF/2μF/100μF | ±(4%+3) |
Temperature (°F) | -40oF~1832oF | ±(1%+4) |
Temperature (°C) | -40℃~1000℃ | ±(1%+3) |
Frequency (Hz) | 2kHz/20kHz | ±(1.5%+5) |
Features | ||
Full Icon Display | √ | |
Diode | √ | |
Continuity Buzzer | √ | |
Low Battery Display | √ | |
Input Impedance for DC Voltage Measurement | 10MΩ | √ |
Data Hold | √ | |
Display Backlight | Auto | √ |
Max. Display | 1999 | √ |
Auto Power Off | √ | |
Device
Characteristics | ||
Power | 9V Battery (6F22) | |
LCD Size | 95mm×25mm | |
Product Color | Red and Grey | |
Product Net Weight | 275g | |
Product Size | 165mm×80mm×38.3mm | |
Standard Accessories | Test Lead, Battery, Point Contact Temperature Probe, Test
Clip | |
Standard Individual Packing | Gift Box,
English Manual | |
