- Stock: In Stock
- Model: UT665 UNI-T

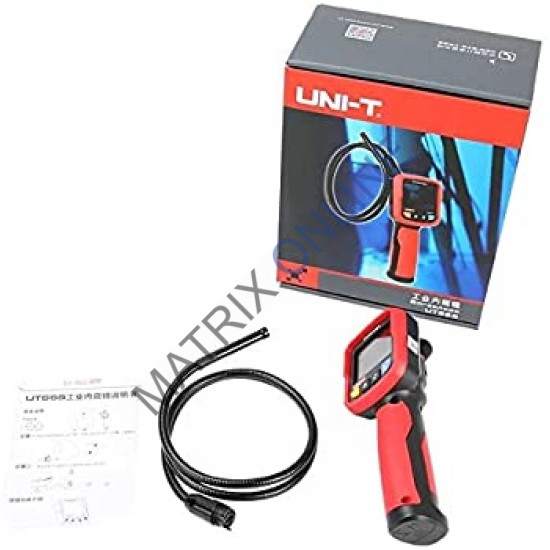

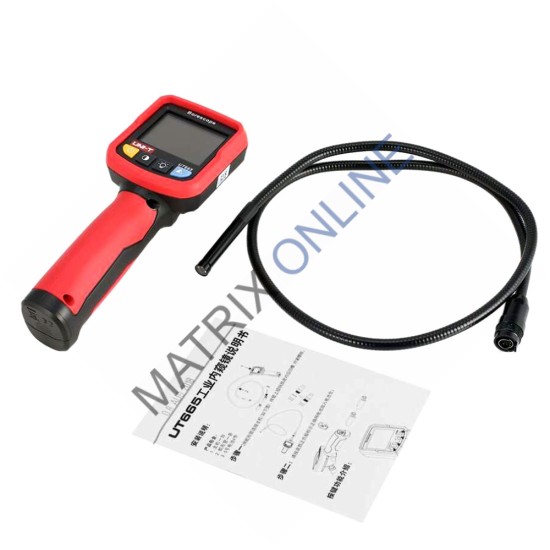

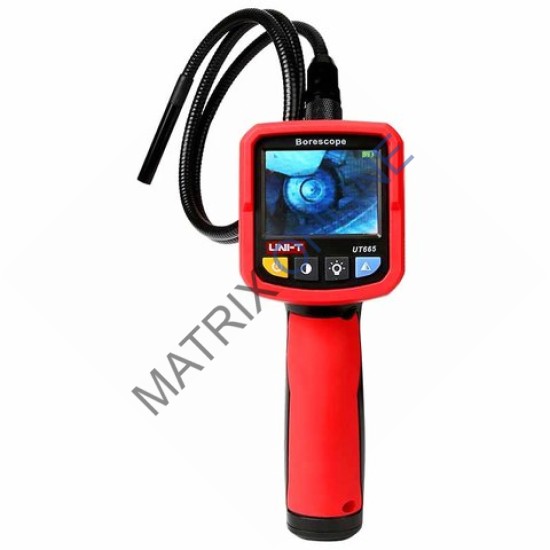

UT665 Digital Bore
scope
UT665 bore scope displays clear images through a flexible
camera probe. It is useful for viewing details of automobiles engine,
pipelines, inner building walls, drain pipes, and other hard to reach
locations. It is designed with 4-level adjustable LED lights and 180 degrees
viewing angle IP67 probe, which can be submerged into water.
Applications:
UT665 can perform non-destructive testing in complex
industrial environments.
Features:
1. Real-time clear display
2. Rotatable images
3. Max 3m camera probe applicable
4. 2.4 inches TFT screen, 480x234
5. Adjustable image saturation of 6 levels
6. Focusing distance: 20mm~100mm
7. CE certification
8. IP67 probe water proof.
Specifications | Range |
Pixels | 640×480 |
Lens diameter | 9mm (Max. 10mm) |
LCD size | 2.4 inches |
Probe length | 1m |
Screen type | TFT |
Features | |
Light source | 4 LED lights |
Depth of field | >20mm |
Water proof | IP67 (probe only) |
Video signal | Analog |
Field of view | 60° |
Image brightness | 6 levels-adjustable |
Illumination | 4 levels-adjustable |
Flippable image | √ |
Battery power indicator | √ |
General Characteristic’s | |
Power | 1.5V battery (R6) x 4 |
Display | 2.36 inches |
Product color | Red and grey |
Product net weight | 500g |
Product size | 196mm x 74mm x 38mm |
Standard accessories | Camera probe, batteries |
Standard individual packing | Gift box, blister, English manual |
