- Stock: In Stock
- Model: UT695D-10

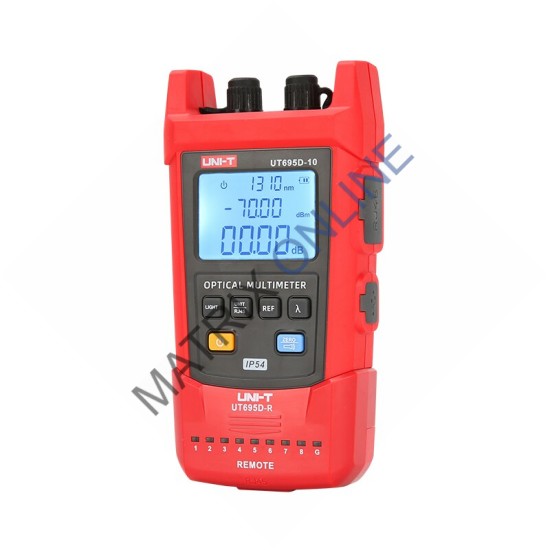

UT695D-10 Digital Optical
Multimeter 800nm~1700nm
UT695D-10 includes optical power meter, visual fault
locator, flashlight, and remote cable tester. UT695D-10 is used for optical
signal power measurement, optical fiber line loss test, optical device insertion
loss test, optical fiber fault detection, optical fiber breakpoint location,
end-to-end optical fiber identification and more. Designed with IP54 dust and
water prevention function, UT695D-10 can be applied to optical cable
construction and maintenance, optical fiber communication, optical fiber sensing,
optical CATV and other fields.
Specifications | ||
Model | Description | |
Optical power meter | Wavelength range | 800nm~1700nm |
Calibrated wavelength | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm,
1650nm | |
Measurement range | -70~3dBm | |
Uncertainty | ±5% | |
Display resolution | Linear: 0.1%, logarithmic: 0.01dBm | |
Connector | FC/SC/ST | |
Detector type | InGaAs | |

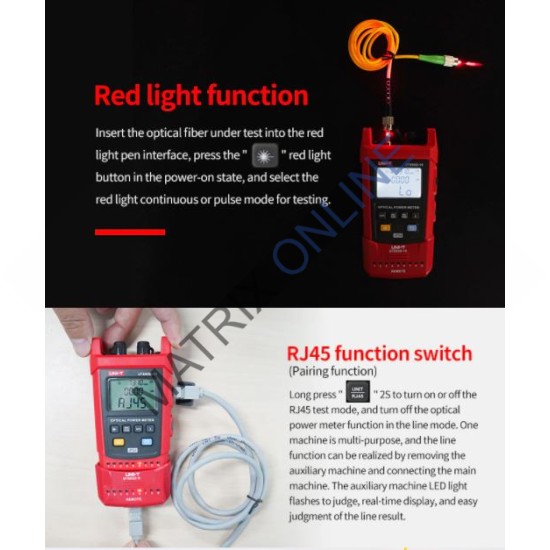

Visual fault locator | Wavelength | 650nm±10nm |
Power | 10mW (measurable optical fiber length: approximately
8~10km) | |
Mode | Continuous/Pulse | |
Connector | FC/SC/ST | |
Flashlight | √ | |
LAN cable sequence test | Line sequence measurement (LED1~8, LED_G) | |
General
Characteristics | ||
Power | 1050mAh rechargeable battery | |
Display | 42mm x 33mm | |
Product color | Red and grey | |
Product net weight | 168g | |
Product size | 132mm x 68mm x 31mm | |
Standard accessories | USB cable | |
Standard individual packing | Gift box, English manual | |
