- Stock: In Stock
- Model: UT890D UNI-T

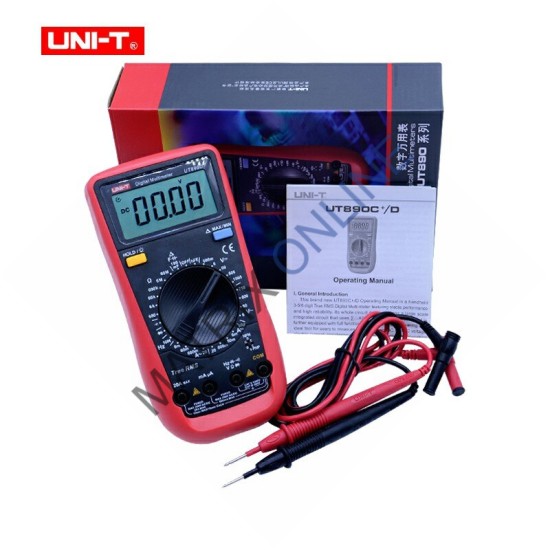

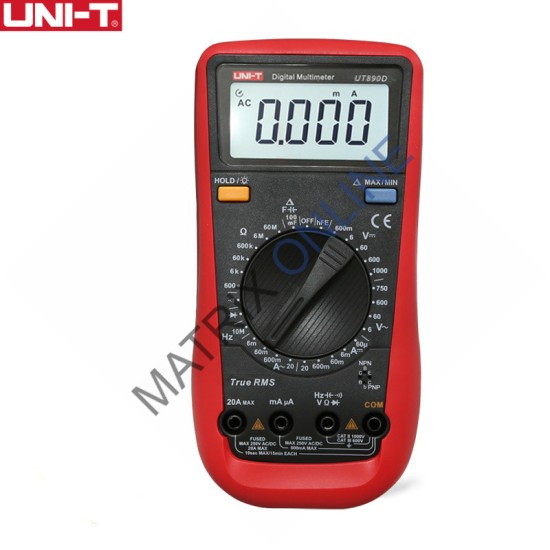

UT890D Digital
Multimeter 750ACV / 1000DCV
Description:
The Uni-T UT 890D Digital Multimeter are designed with large
LCD display. UT890D is cheap accurate multimeter for very tight budgets. It is
now available in Pakistan.
Product features
True RMS measure for Current and Voltage. 6000 Counts
display range.
REL function for Capacitance measuring. Minimum resolution
rate 1pF, Maximum measuring range up to 6000uF.
Overload protection up to 600V for Capacitance, Resistance,
Buzzer, Diode and Frequency measuring.
High accurate frequency measuring function. Minimum
resolution rate 0.001Hz, Unique (MAX-MIN) value calculate function.
Data hold, backlight, Auto off. One 9V6F22 Battery Included.
Specification: | ||
Display range | 6000 | |
Manual range | Yes | |
True RMS | Yes | |
Frequency respond | Yes (40Hz~1 KHz) (Sine Wave, triangular wave) | |
Max/Min; (Max-Min) Calculator | Max/Min; (Max-Min) Calculate: Yes | |
Diodes test | Yes | |
Auto power off | Yes (About 15 minutes) | |
Continuity test | Yes (buzzer) | |
Low voltage indicating | Yes | |
Data hold | Yes | |
REL: Yes | Yes | |
LCD backlight | Yes | |
hFE | Yes | |
Input Impedance for DC Voltage Measurement | 10M | |
Power supply | 9V6F22 Battery (Battery Included) | |
Weight: 300 gram (g.) | Weight: 300 gram (g.) | |
LCD screen dimension | 63mm*29mm | |
Safety grade | CE / CAT.II 1000V / CAT.III 600V | |
External dimension: | 186mm*91mm*39mm | |
ACCURACY | ||
DC voltage | 600.0mV | ± (0.5%+4) |
6.000V/60.00V/600.0V | ± (0.5%+2) | |
1000V | ± (0.7%+10) | |
AC voltage: | 6.000V/60.00V/600.0V | ± (0.8%+3) |
750V | ± (1.0%+10) | |
DC Current: | 60.00uA/6.000mA/60.00mA | ± (0.8%+8) |
600.0mA | ± (1.2%+5) | |
20A | ± (2.0%+5) | |
AC Current | 6.000mA/60.00mA | ± (1.0%+12) |
600.0mA | ± (2.0%+3) | |
20A | ± (3.0%+5) | |
Resistance | 600.0Ω | ± (0.8%+5) |
6.000kΩ¸/60.00kΩ¸/600.0kΩ¸/6.000MΩ | ± (0.8%+3) | |
60.00MΩ | ± (1.0%+25) | |
Capacitance | 6.000nF | ± (5.0%+35) |
60.00nF ~ 600.0uF | ± (2.5%+20) | |
6000uF | ± (5%+10) | |
Frequency | 9.999Hz ~ 9.999MHz | ± (0.1%+5) |
Measuring range: | 10Hz~10MHz (Auto range) | |
10Hz~10MHz (Auto range) | ≤100kHz: 100mVRMS≤ Input ≤30VRMS, | |
> 100 kHz~1MHz: 200mVRMS ≤ Input ≤ 30VRMS, | ||
>1MHz: 600mVRMS ≤ Input ≤ 30VRMS | ||
